SELECT A DIAGRAM

01 - Cabinet Parts


02 - Cabinet Trim Parts


03 - Freezer Shelf Parts


04 - Refrigerator Liner Parts


05 - Control Panel Parts


06 - Top Grille And Unit Cover Parts


07 - Refrigerator Shelf Parts


08 - Freezer Liner And Air Flow Parts


09 - Motor And Ice Container Parts


10 - Refrigerator Door Parts


11 - Freezer Door Parts


12 - Dispenser Front Parts

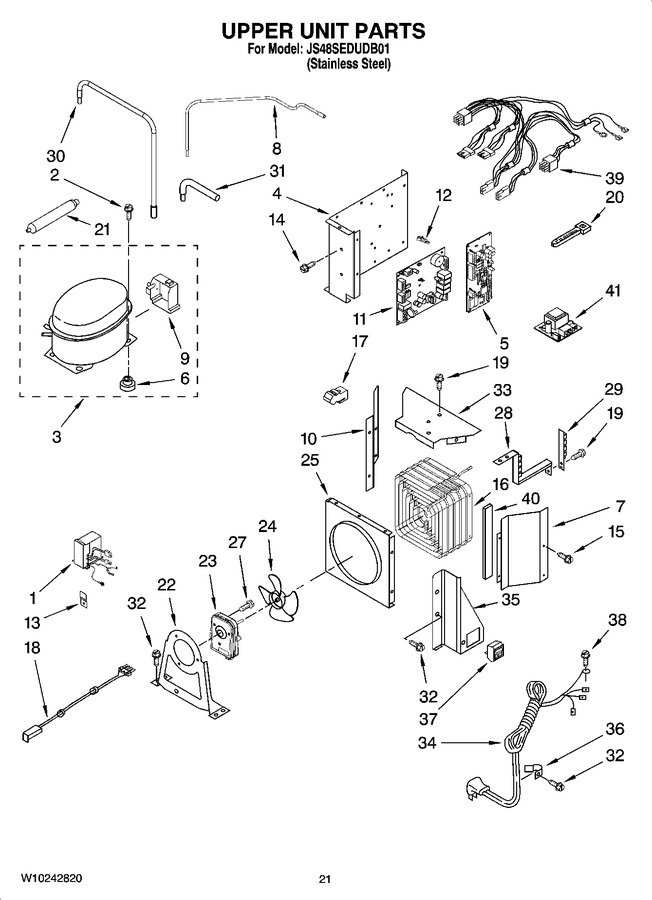

13 - Upper Unit Parts


14 - Lower Unit And Tube Parts


15 - Icemaker Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10629033		Inverter Box   (Replaces: W10133449)			Immediately	$ 380.10
2	876811		Screw, Compressor Mounting (4)   (Replaces: 489373)				$ 6.68
3	W10841139		Compressor (includes Items 6 & 9)(also Order 876765 Tube Kit)   (Replaces: W10173296)			Immediately	$ 433.30
4	2318087		Housing, Control Board				$ 72.43
5	WP2318054		Control Board   (Replaces: 2318054)			Immediately	$ 282.72
6	876811		Grommet, Mounting   (Replaces: 1100826)				$ 6.68
7	2309002		Support, Conenser		Appelez-nous	-
8	2307694		Tube, Tranisiton (cond/ht Loop) (right)		Appelez-nous	-
9	2215676		Terminal Cover				$ 80.88
10	2309001		Support, Condenser (left)		Appelez-nous	-
11	W10219462		Control Board   (Replaces: W10121049)				$ 293.81
12	WP2203075		Spacer (5)   (Replaces: 2203075)			Immediately	$ 16.12
13	2256328		Bracket, Inverter Box		Appelez-nous	-
14	W11624204		Screw   (Replaces: 486194)				$ 12.62
15	WP489069		Screw   (Replaces: 1157158)			Immediately	$ 7.07
16	2307998		Condenser				$ 437.18
17	2309431		Grommet (2)				$ 12.20
18	2310207		Wire, Jumper		Appelez-nous	-
19	WP489399		Screw   (Replaces: 489399)				$ 6.26
20	WPW10339879		Wire Tie   (Replaces: 2155774)				$ 7.11
21	WPW10143759		Drier   (Replaces: W10175593)			Immediately	$ 27.70
22	WPW10136614		Bracket, Fan Motor (condenser Fan)   (Replaces: W10136614)				$ 71.20
23	W11578915		Motor, Fan   (Replaces: 2188875)			Immediately	$ 64.28
24	WPW10139483		Blade, Fan   (Replaces: W10139483)				$ 85.56
25	2003169		Orifice, Fan		Appelez-nous	-
27	WP8533993		Screw   (Replaces: 8533993)				$ 9.51
28	2317031		Bracket, Vibration Condenser		Appelez-nous	-
29	2317030		Arm, Vibration Condenser		Appelez-nous	-
30	2307566		Tube, Transition (condenser/drier)				$ 15.29
31	W10528578		Tube, Process   (Replaces: 2194319)				$ 34.13
32	W11624204		Screw   (Replaces: 486194)				$ 12.62
33	2309000		Cover, Condenser		Appelez-nous	-
34	WP2310251		Service Cord   (Replaces: 2310251)				$ 76.23
35	W10185556		Bracket, Mounting (power Switch)		Appelez-nous	-
36	549193		Clamp,cord				$ 12.05
37	WP2266802		Switch, Power Disconnect   (Replaces: 2266802)				$ 93.50
38	00487294		Screw, Ground   (Replaces: 487294)				$ 157.58
39	W10178860		Wiring Harness, Unit Compartment				$ 281.92
40	2309432		Gasket, Condenser		Appelez-nous	-
41	WP2259350		Power Supply, Ingredient Care Center   (Replaces: 2259350)				$ 124.59
NI	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 94.73
NI	978026		Valve, Access (5/16``)			Immediately	$ 115.28
NI	SF5538		Valve, Access(3/8``)   (Replaces: 978027)				$ 19.48
NI	978028		Valve, Access (1/2``)		Appelez-nous	-
NI	978029		Valve, Access (5/8``)				$ 93.85
NI	978030		Valve, Access (3/4``)				$ 117.64
NI	876764		Valve, Access(3/16``)			Immediately	$ 82.22

    View Diagram in Separate Window       Print Part List
