Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

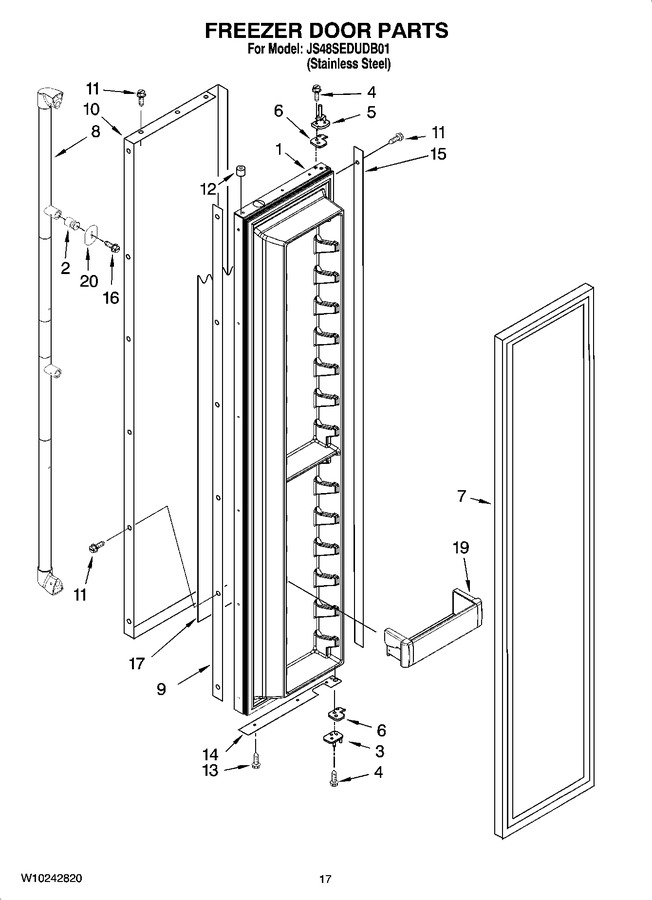

1	W10197920		Freezer Door (includes 7)		Appelez-nous	-
2	WPW10153450		Stud, Handle   (Replaces: W10153450)				$ 74.79
3	W11752085		Hinge, Bottom   (Replaces: 2302879)				$ 54.06
4	W11474472		Screw   (Replaces: 489282)			Immediately	$ 7.22
5	W11724512		Hinge, Top   (Replaces: 2266854)				$ 267.86
6	W11673500		Spacer-door, Top & Bottom   (Replaces: 2316804)			Immediately	$ 97.26
7	WP2266901		Door Gasket, Magnetic   (Replaces: 2222810)				$ 317.01
8	12850907		Handle, Door (stainless Steel)				$ 119.22
9	2309060		Spacer, Door-skin (handle Side) (for Stainless Steel Model)		Appelez-nous	-
10	W10144964		Skin, Door (stainless Steel)		Appelez-nous	-
11	WP8281250		Screw (stainless Steel)   (Replaces: 8281250)				$ 9.79
12	2005433		Spacer, Door-skin (top)				$ 20.00
13	W10759522		Screw   (Replaces: 488568)				$ 6.98
14	2257386		Spacer, Door-skin (bottom)		Appelez-nous	-
15	2309056		Spacer, Door-skin (hinge Side)		Appelez-nous	-
16	WP308544		Screw, Handle   (Replaces: 308544)			Immediately	$ 6.98
17	W10159583		Filler, Door (bottom)		Appelez-nous	-
17	W10159585		Filler, Door (top)   (Replaces: W10159586)		Appelez-nous	-
19	W11590561		Bin, Door (3)   (Replaces: 2222777)				$ 80.77
20	W10127710		Plate, Door-handle			Immediately	$ 22.23
