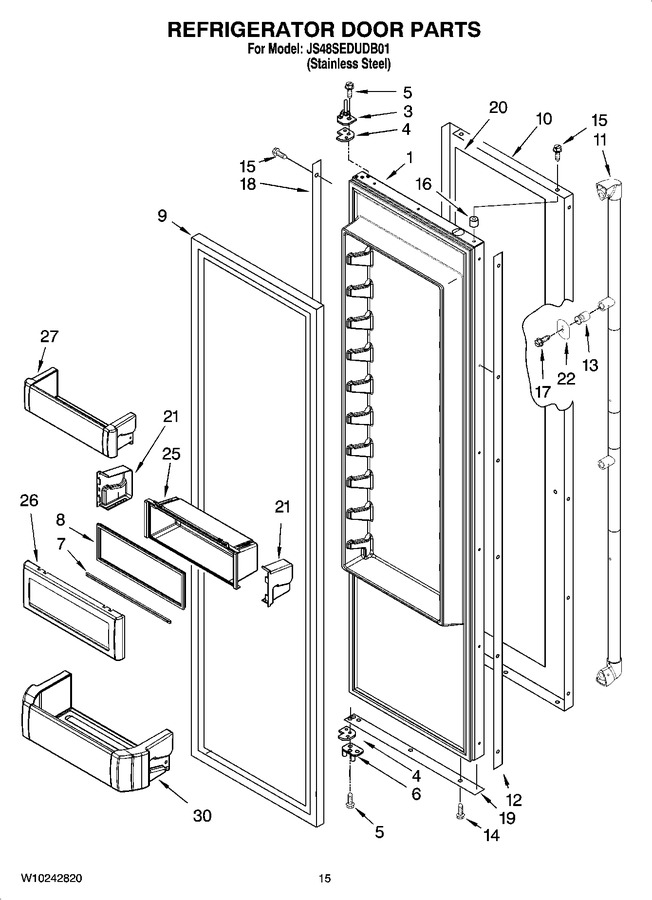

JS48SEDUDB01 | TransGlobal : Appliance Model Lookup

Diagram #	Part Number	Description	Availability	Ships	Price
1	W10197114	Refrigerator Door Panel (includes Item 9)	Appelez-nous	-
3	W11724512	Hinge Assembly, Top (Replaces: 2266854)			$ 267.86
4	W11673500	Spacer-door, Top & Bottom (Replaces: 2316804)		Immediately	$ 97.26
5	W11474472	Screw (Replaces: 489282)		Immediately	$ 7.22
6	2302878	Hinge Assembly, Bottom		Immediately	$ 78.01
7	W11348580	Rail, Lid (Replaces: 2222797)		Immediately	$ 145.92
8	W11348580	Gaasket, Utility Bin (Replaces: 2222983)		Immediately	$ 145.92
9	WP2266903	Door Gasket, Magnetic (Replaces: 2222812)		Immediately	$ 291.45
10	W10144970	Skin, Door (stainless Steel)	Appelez-nous	-
11	WP12850908	Handle, Door (stainless Steel) (Replaces: 12850908)			$ 257.68
12	2309060	Spacer, Door-skin (handle Side) (for Stainless Steel Model)	Appelez-nous	-
13	WPW10153450	Stud, Handle (Replaces: W10153450)			$ 74.79
14	W10759522	Screw (Replaces: 488568)			$ 6.98
15	WP8281250	Screw, 8-15 X .500 (stainless Steel) (Replaces: 8281250)			$ 9.79
16	2005433	Spacer, Door-skin (top)			$ 20.00
17	WP308544	Screw, Handle (Replaces: 308544)		Immediately	$ 6.98
18	2309056	Spacer, Door-skin (hinge Side)	Appelez-nous	-
19	WP2257343	Spacer, Door-skin (bottom) (Replaces: 2004935)			$ 74.33
20	2005327	Filler, Door	Appelez-nous	-
21	WPW10323173	End Cap (left Side) (Replaces: 2222920)			$ 7.37
21	WPW10323172	End Cap (right Side) (Replaces: 2222919)			$ 7.37
22	W10127710	Plate, Door-handle		Immediately	$ 22.23
25	W11348580	Bin, Utility Center (Replaces: 2222923)		Immediately	$ 145.92
26	W11348580	Door, Utility Bin (Replaces: 2257617)		Immediately	$ 145.92
27	W11752086	Bin, Door (3) (Replaces: 2222774)			$ 58.45
30	W10323748	Bin, Door (Replaces: 2222771)			$ 104.38
