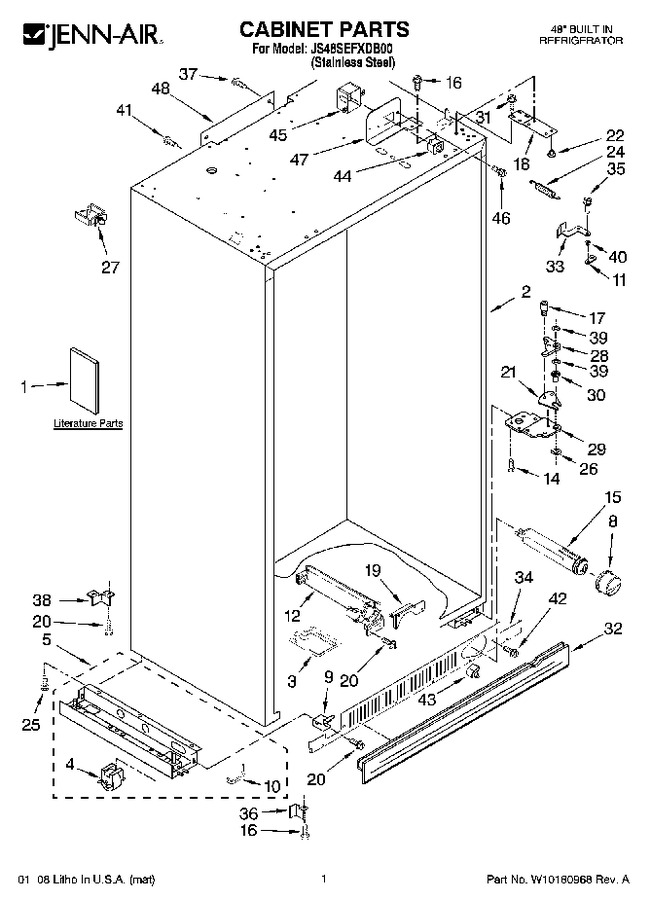

01 - Cabinet Parts


02 - Cabinet Trim Parts


03 - Freezer Shelf Parts


04 - Refrigerator Liner Parts


05 - Control Panel Parts


06 - Top Grille And Unit Cover Parts


07 - Refrigerator Shelf Parts


08 - Freezer Liner And Air Flow Parts


09 - Refrigerator Door Parts


10 - Freezer Door Parts


11 - Upper Unit Parts


12 - Lower Unit And Tube Parts


13 - Icemaker Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10151249		Installation Instructions		Appelez-nous	-
1	W10151251		Use & Care Guide		Appelez-nous	-
1	W10164080		Energy Guide		Appelez-nous	-
1	W10159831		Service & Wiring Sheet		Appelez-nous	-
1	2306337		Icemaker And Ingredient Care Center Service Sheet		Appelez-nous	-
1	2318069		Main Control Service Sheet		Appelez-nous	-
3	2318189		Tray, Drip Filter				$ 127.49
4	WPW10138054		Roller, Front & Rear (4)   (Replaces: W10138054)				$ 38.86
5	W10860448		Support, Leveler Assembly (refrigerator Side)   (Replaces: 2318194)			Immediately	$ 328.28
5	W10860229		Support, Leveler Assembly (freezer Side)   (Replaces: 2318193)				$ 327.29
8	WP2260518B		Cap, Water Filter (black)   (Replaces: 2260518B)			Immediately	$ 25.43
9	W10839844		Mounting Stud, Grille   (Replaces: 2307640)				$ 37.08
10	2307584		Grommet, Crossover Tube				$ 20.06
11	2005783		Cam, Door Closer				$ 26.20
12	WPW10121140		Housing, Water Filter   (Replaces: 2260526)			Immediately	$ 154.76
14	3400525		Screw				$ 12.83
15	EDR3RXD1B		Filter, Water   (Replaces: 4396841)			Immediately	$ 49.99
16	WP489399		Screw   (Replaces: 489399)				$ 6.26
17	W11769878		Screw, Door Stop   (Replaces: 3400230)				$ 10.94
18	2257644		Hinge (top)				$ 152.55
19	W11755873		Bracket, Mount (water Filter)   (Replaces: 2318190)				$ 68.85
20	WP489464		Screw   (Replaces: 489464)			Immediately	$ 7.05
21	WP2004994		Lock, Adjustable Bushing   (Replaces: 2004994)			Immediately	$ 7.16
22	2300082		Bushing				$ 13.44
24	WP2004517		Spring, Door Closure (left Side)   (Replaces: 2004517)			Immediately	$ 81.80
24	W11805224		Spring, Door Closure (right Side)   (Replaces: 2221242)		Appelez-nous	-
25	W11624204		Screw   (Replaces: 486194)				$ 12.62
26	WP489236		Retaining Ring, Adjustable Bushing   (Replaces: 2005008)			Immediately	$ 10.95
27	W10129069		Wire Clip (5)		Appelez-nous	-
28	2006342		Gap, Cover Assembly (bottom)		Appelez-nous	-
29	W10527053		Hinge (bottom) (refrigerator Side)   (Replaces: 2006779)				$ 117.63
29	WP2006780		Hinge (bottom) (freezer Side)   (Replaces: 2006780)				$ 256.57
30	WP2302876		Bushing, Adjustable   (Replaces: 2302876)			Immediately	$ 77.76
31	W11721628		Screw 1/4-20 X 5/8   (Replaces: 8533913)				$ 12.67
32	2209026B		Skirt-grille, Bottom (black)				$ 76.14
33	W11298172		Extension Arm, Door Closer (left)   (Replaces: 2266881)			Immediately	$ 74.94
33	W10847927		Extension Arm, Door Closer (right)   (Replaces: 2266882)				$ 85.64
34	2325186B		Grille Bottom, Front (black)				$ 84.63
35	2005921		Screw				$ 7.65
36	2006616		Bracket, Support Base (front) (left)				$ 78.45
36	2006556		Bracket, Support Base (front) (right)				$ 31.89
37	WP489069		Screw   (Replaces: 1157158)			Immediately	$ 7.07
38	2006617		Bracket, Support Base (rear) (2)		Appelez-nous	-
39	WP2006346		Washer   (Replaces: 2006346)			Immediately	$ 10.08
40	WP2316859		Bushing, Extension Arm   (Replaces: 2266880)			Immediately	$ 46.46
41	WP1163283		Screw   (Replaces: 1163283)				$ 6.47
42	WP8281163		Screw   (Replaces: 8281163)			Immediately	$ 9.17
43	WP2260503B		Button, Filter   (Replaces: 2260503B)				$ 65.50
44	W11457217		Switch, Rocker Arm (freezer Door Side)   (Replaces: 1115373)				$ 34.36
44	W11384469		Switch, Rocker Arm (refrigerator Door Side)   (Replaces: 1118894)			Immediately	$ 33.51
45	2215938		Cover, Switch (2)				$ 81.24
46	WP965173		Screw (2)   (Replaces: 487415)			Immediately	$ 9.65
47	2221096		Bracket, Switch (left)				$ 83.88
47	W10741111		Bracket, Switch (right)   (Replaces: 2221097)				$ 57.74
48	2215612		Cover, Rear		Appelez-nous	-
