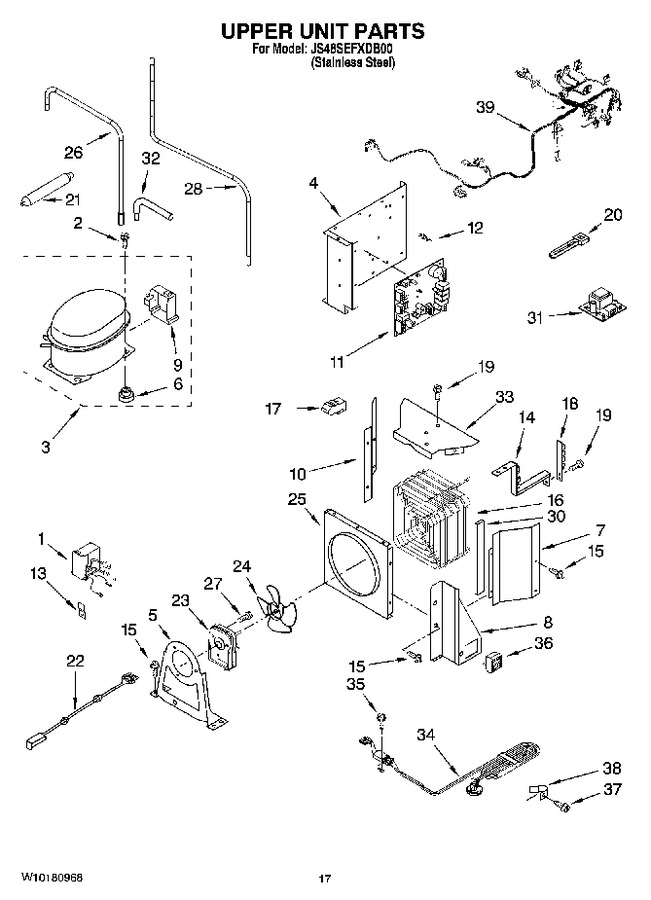

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10629033 | Inverter Box (Replaces: W10133449) |
|
Immediately | $ 380.10 | ||||
| 2 | 876811 | Screw, Compressor Mounting (4) (Replaces: 489373) |
|
$ 6.68 | |||||
| 3 | W10841139 | Compressor (includes Items 6 & 9)(also Order 876765 Tube Kit) (Replaces: 2223393) |
|
Immediately | $ 433.30 | ||||
| 4 | 2318087 | Housing, Control Board |
|
$ 72.43 | |||||
| 5 | WPW10136614 | Bracket, Fan Motor (Replaces: W10136614) |
|
$ 71.20 | |||||
| 6 | 876811 | Grommet, Mounting (Replaces: 1100826) |
|
$ 6.68 | |||||
| 7 | 2309002 | Support, Condenser (right) |
|
- | |||||
| 8 | 2307684 | Bracket, Switch |
|
- | |||||
| 9 | 2215676 | Cover, Terminal |
|
$ 80.88 | |||||
| 10 | 2309001 | Support, Condenser (left) |
|
- | |||||
| 11 | W10219462 | Control Board (Replaces: W10121049) |
|
$ 293.81 | |||||
| 12 | WP2203075 | Spacer (5) (Replaces: 2203075) |
|
Immediately | $ 16.12 | ||||
| 13 | 2256328 | Bracket, Inverter Box |
|
- | |||||
| 14 | 2317031 | Bracket, Vibration Condenser |
|
- | |||||
| 15 | WP489069 | Screw (Replaces: 1157158) |
|
Immediately | $ 7.07 | ||||
| 16 | 2307998 | Condenser |
|
$ 437.18 | |||||
| 17 | 2309431 | Grommet (4) |
|
$ 12.20 | |||||
| 18 | 2317030 | Arm, Vibration Condenser |
|
- | |||||
| 19 | WPW10141625 | Screw (Replaces: 488649) |
|
$ 19.04 | |||||
| 20 | WPW10339879 | Wire Tie (Replaces: 2155774) |
|
$ 7.11 | |||||
| 21 | WPW10143759 | Drier (Replaces: 2317982) |
|
Immediately | $ 27.70 | ||||
| 22 | 2310207 | Wire Assembly (condenser Fan) |
|
- | |||||
| 23 | W11578915 | Motor, Fan (Replaces: 2188875) |
|
Immediately | $ 64.28 | ||||
| 24 | WPW10139483 | Blade, Fan (Replaces: W10139483) |
|
$ 85.56 | |||||
| 25 | 2003169 | Orifice, Fan |
|
- | |||||
| 26 | 2307566 | Tube, Drier Transition |
|
$ 15.29 | |||||
| 27 | WP8533993 | Screw (Replaces: 8533993) |
|
$ 9.51 | |||||
| 28 | 2307694 | Tube, Heat Loop Transition |
|
- | |||||
| 30 | 2309432 | Gasket, Condenser |
|
- | |||||
| 31 | WP2259350 | Power Supply, Ingredient Care Center (Replaces: 2259350) |
|
$ 124.59 | |||||
| 32 | W10528578 | Process, Tube (Replaces: 2194319) |
|
$ 34.13 | |||||
| 33 | 2309000 | Cover, Condenser |
|
- | |||||
| 34 | WP2310251 | Service Cord (Replaces: 2310251) |
|
$ 76.23 | |||||
| 35 | W11624204 | Screw (Replaces: 486194) |
|
$ 12.62 | |||||
| 36 | WP2266802 | Switch, Power Disconnect (Replaces: 2266802) |
|
$ 93.50 | |||||
| 37 | 00487294 | Screw, Ground (Replaces: 487294) |
|
$ 157.58 | |||||
| 38 | 549193 | Clamp,cord |
|
$ 12.05 | |||||
| 39 | W10178864 | Wiring Harness, Unit Compartment (Replaces: 2310294) |
|
- | |||||
| 978028 | Valve, Access (1/2``) |
|
- | ||||||
| WP978025 | Valve, Access (1/4``) (Replaces: 978025) |
|
Immediately | $ 94.73 | |||||
| SF5538 | Valve, Access(3/8``) (Replaces: 978027) |
|
$ 19.48 | ||||||
| 978026 | Valve, Access (5/16``) |
|
Immediately | $ 115.28 | |||||
| 876764 | Valve, Access(3/16``) |
|
Immediately | $ 82.22 | |||||
| 978030 | Valve, Access (3/4``) |
|
$ 117.64 | ||||||
| 978029 | Valve, Access (5/8``) |
|
$ 93.85 |
