SELECT A DIAGRAM

01 - Cabinet Parts


02 - Cabinet Trim Parts


03 - Freezer Shelf Parts


04 - Refrigerator Liner Parts


05 - Control Panel Parts


06 - Top Grille And Unit Cover Parts


07 - Refrigerator Shelf Parts


08 - Freezer Liner And Air Flow Parts


09 - Refrigerator Door Parts


10 - Freezer Door Parts


11 - Upper Unit Parts


12 - Lower Unit And Tube Parts


13 - Icemaker Parts

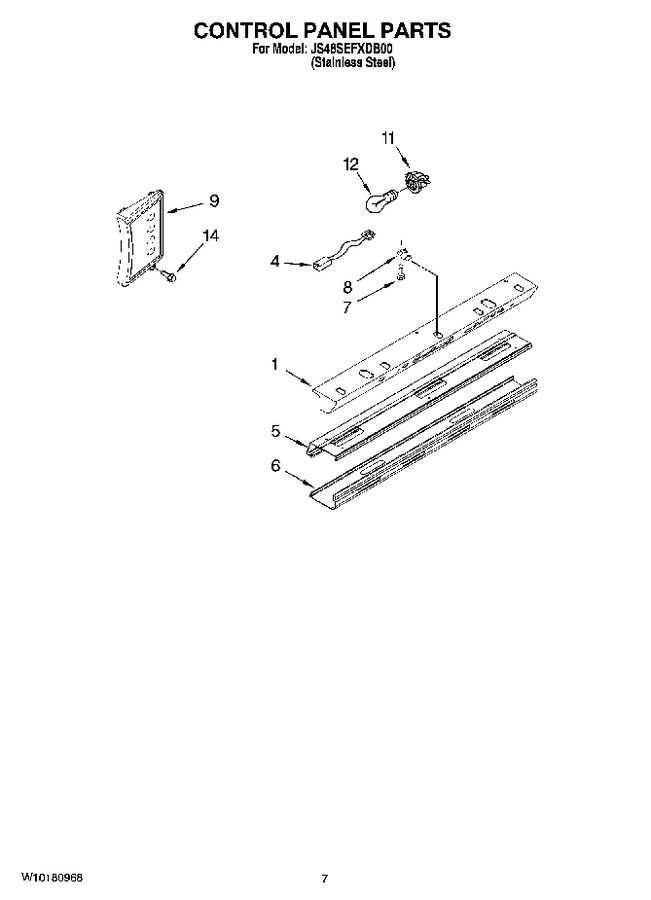

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10151199		Control Box Assy		Appelez-nous	-
4	2310164		Wire, Jumper		Appelez-nous	-
5	2324973		Bracket, Control Box		Appelez-nous	-
6	2307596		Shield, Light				$ 65.90
7	WP488729		Screw   (Replaces: 487539)			Immediately	$ 7.01
8	2317000		Clip, Control Box		Appelez-nous	-
9	WPW10151210		Display Board, Ingredient Care Center   (Replaces: W10151210)				$ 464.20
11	WPW10191429		Socket, Light   (Replaces: 2223857)				$ 7.54
12	WPA3073101		Light Bulb   (Replaces: 2326255)			Immediately	$ 10.90
14	WPW10142283		Screw   (Replaces: 8281185)				$ 8.86

    View Diagram in Separate Window       Print Part List
