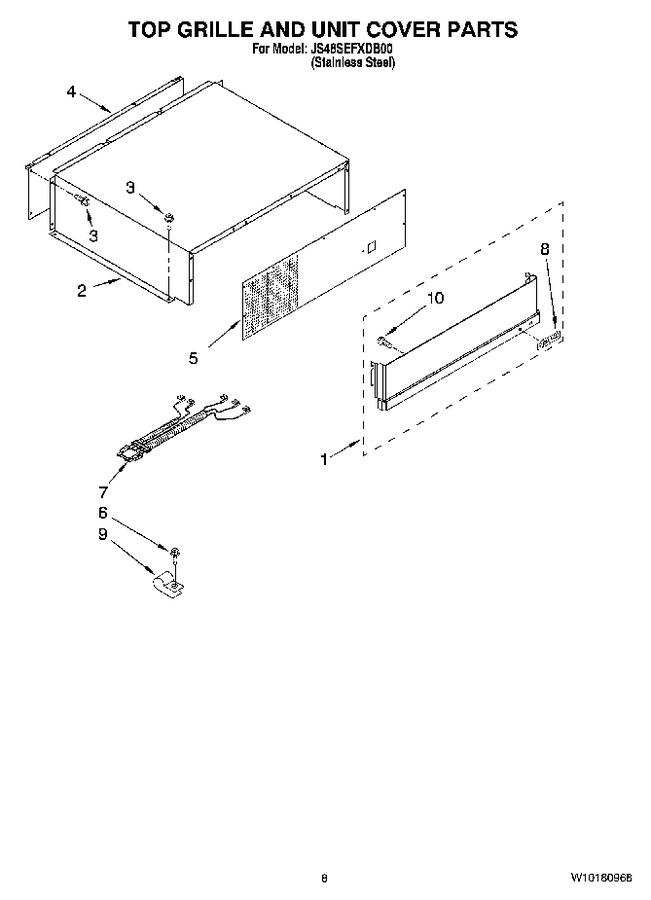

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10162619		Panel, Decorative		Appelez-nous	-
2	W10161693		Cover, Unit		Appelez-nous	-
3	W11624204		Screw   (Replaces: 486194)				$ 12.62
4	2256466		Back Panel				$ 280.48
5	W10121229		Cover, Unit Front		Appelez-nous	-
6	WP965173		Screw   (Replaces: 487415)			Immediately	$ 9.65
7	2310194		Wire Assembly Rc/fc Light Switch				$ 69.47
8	W10159580		Nameplate		Appelez-nous	-
9	489348		Clamp		Appelez-nous	-
10	WP489399		Screw (6)   (Replaces: 489399)				$ 6.26
