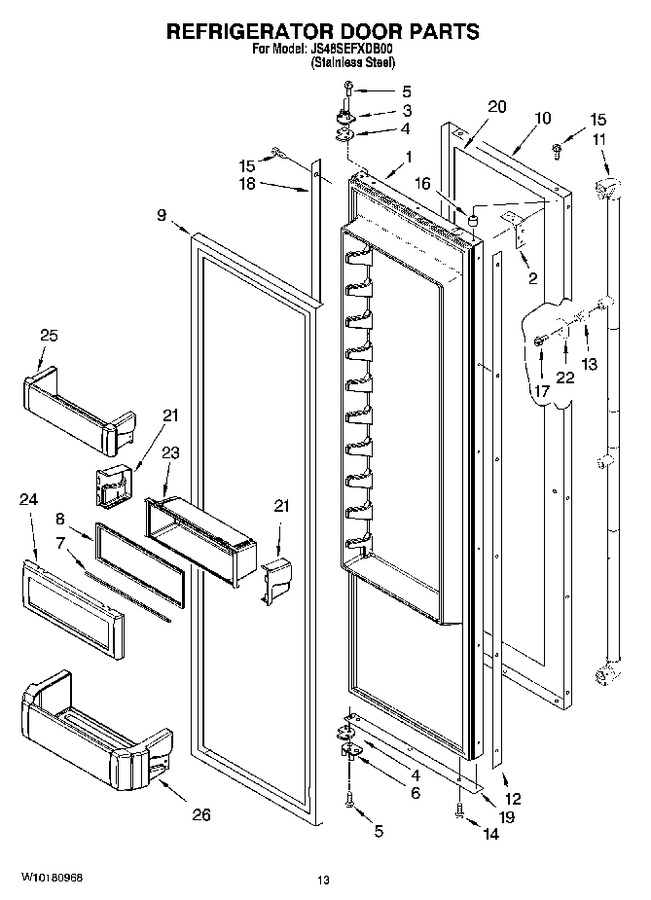

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2252331		Refrigerator Door (includes 9)				$ 1,681.37
2	2258951		Brace, Door Corner				$ 33.35
3	W11724512		Hinge Assembly, Top   (Replaces: 2266854)				$ 267.86
4	W11673500		Spacer-door, Top & Bottom   (Replaces: 2316804)			Immediately	$ 97.26
5	W11474472		Screw   (Replaces: 489282)			Immediately	$ 7.22
6	2302878		Hinge Assembly, Bottom			Immediately	$ 78.01
7	W11348580		Rail, Lid   (Replaces: 2222797)			Immediately	$ 145.92
8	W11348580		Gasket, Utility Bin   (Replaces: 2222983)			Immediately	$ 145.92
9	WP2266903		Door Gasket, Magnetic   (Replaces: 2222812)			Immediately	$ 291.45
10	W10144970		Skin, Door		Appelez-nous	-
11	WP12850908		Handle, Door   (Replaces: 12850908)				$ 257.68
12	2309060		Spacer, Door (handle Side)		Appelez-nous	-
13	WPW10153450		Stud, Handle (4)   (Replaces: W10153450)				$ 74.79
14	W10759522		Screw   (Replaces: 488568)				$ 6.98
15	WP8281250		Screw, 8-15 X .500 (stainless Steel)   (Replaces: 8281250)				$ 9.79
16	2005433		Spacer, Door-skin (top)				$ 20.00
17	WP308544		Screw (4)   (Replaces: 308544)			Immediately	$ 6.98
18	2005030		Spacer, Door (hinge Side)		Appelez-nous	-
19	WP2257343		Spacer, Door-skin (bottom)   (Replaces: 2004935)				$ 74.33
20	2005327		Filler, Door		Appelez-nous	-
21	WPW10323172		End Cap (right Side)   (Replaces: 2222919)				$ 7.37
22	W10127710		Plate, Door-handle (4)			Immediately	$ 22.23
23	W11348580		Bin, Utility Center   (Replaces: 2222923)			Immediately	$ 145.92
24	W11348580		Door, Utility Bin   (Replaces: 2257617)			Immediately	$ 145.92
25	W11752086		Bin, Door (3)   (Replaces: 2222774)				$ 58.45
26	W10323748		Bin, Door Door   (Replaces: 2222771)				$ 104.38
21A	WPW10323173		End Cap (left Side)   (Replaces: 2222920)				$ 7.37
