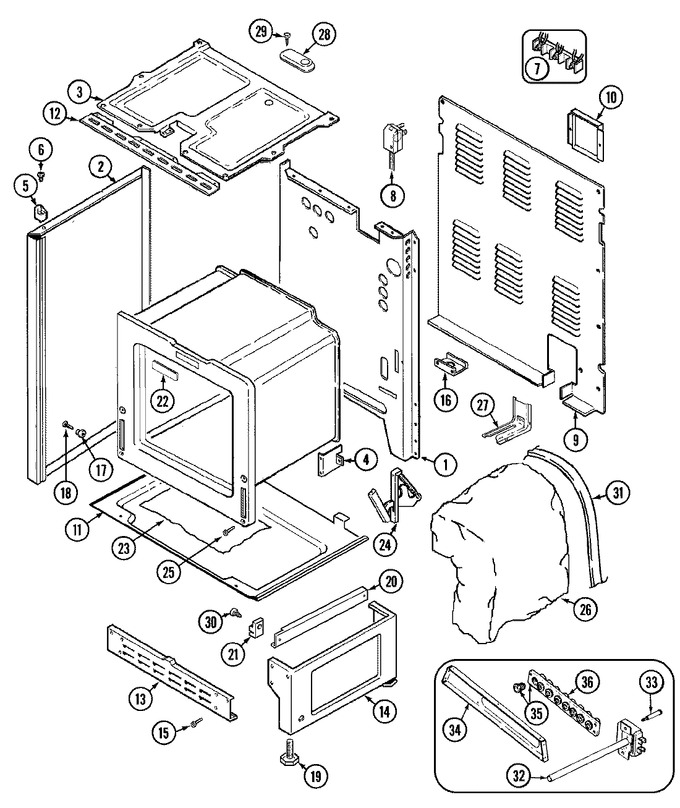

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Body
02 - Control Panel
03 - Door/drawer
04 - Oven
05 - Top Assembly
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74001772 | Back, Main | 18 |
|
- | ||||
| 2 | 74001884 | Panel, Side (wht) | 18 |
|
- | ||||
| 3 | 4011F239-19 | Box, Burner | 18 |
|
- | ||||
| 4 | 3807F400-51 | Support,oven Rear | 18 |
|
- | ||||
| 5 | 8010P087-60 | Spacer, Main Top (lt) | 18 |
|
- | ||||
| 5 | 8010P088-60 | Spacer, Main Top (rt) | 18 |
|
- | ||||
| 6 | 7101P313-60 | Screw (8abx3/8-zn) | 18 |
|
- | ||||
| 7 | WPW10245259 | Block, Terminal (Replaces: 7401P038-60) | 18 |
|
Immediately | $ 31.65 | |||
| 8 | 7402P050-60 | Cord, Power | 18 |
|
- | ||||
| 9 | 4005F454-51 | Cover, Wire | 18 |
|
- | ||||
| 10 | 4005F427-51 | Cover, Access | 18 |
|
- | ||||
| 11 | 3804F112-51 | Retainer, Insulation | 18 |
|
- | ||||
| 12 | 3801F305-80 | Bracket, Main Top | 18 |
|
- | ||||
| 13 | 4020F001-80 | Pedestal, Front/rear | 18 |
|
- | ||||
| 14 | 4020W017-80 | Pedestal, Sides | 18 |
|
- | ||||
| 15 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 18 |
|
Immediately | $ 12.62 | |||
| 16 | 3605F174-51 | Plate, Conduit Tubing | 18 |
|
- | ||||
| 17 | W10857933 | Spacer, Side Panel (Replaces: 8004P024-60) | 18 |
|
$ 7.07 | ||||
| 18 | WP4159193 | Screw (Replaces: 7101P336-60) | 18 |
|
$ 4.29 | ||||
| 19 | 74001311 | Leg, Leveling | 18 |
|
- | ||||
| 20 | 3406F028-51 | Runner, Drawer | 18 |
|
- | ||||
| 21 | 8004P033-60 | Support, Drawer | 18 |
|
- | ||||
| 22 | 7718P013-60 | Cover, Door Lock | 18 |
|
- | ||||
| 23 | 8312P058-60 | Foil, Insulation Retainer | 18 |
|
- | ||||
| 24 | 7106P055-60 | Hinge | 18 |
|
$ 52.22 | ||||
| 25 | WP4159193 | Screw (10-24x5/16-ni) (Replaces: 7101P282-60) | 18 |
|
$ 4.29 | ||||
| 26 | 4804F039-60 | Insulation, Oven Back | 18 |
|
- | ||||
| 26 | 4804F044-60 | Insulation, Oven Wrap | 18 |
|
- | ||||
| 27 | WP3801F656-51 | Bracket, Anti-tip (Replaces: 3801F218-51) | 18 |
|
Immediately | $ 4.69 | |||
| 27 | WP7101P485-60 | Screw (Replaces: 7101P344-60) | 18 |
|
$ 26.33 | ||||
| 28 | 4005F432-45 | Cover, Vent | 18 |
|
- | ||||
| 29 | WPW10348409 | Screw (8abx13/16-zn) (Replaces: 74001449) | 18 |
|
Immediately | $ 6.98 | |||
| 30 | WPW10348409 | Screw (8abx13/16-zn) (Replaces: 74001449) | 18 |
|
Immediately | $ 6.98 | |||
| 31 | 4820F001-59 | Strap, Retainer | 18 |
|
- | ||||
| 32 | 7404P057-60 | Thermostat, Redundant | 18 |
|
- | ||||
| 33 | 7101P337-60 | Screw | 18 |
|
- | ||||
| 34 | 3801F309-80 | Bracket, Fuse | 18 |
|
- | ||||
| 35 | 7401A032-60 | Block, Fuse Assy. | 18 |
|
- | ||||
| 35 | 7416P005-60 | Fuse, 125v 20a | 18 |
|
- | ||||
| 35 | 7416P006-60 | Fuse, 125v 15a | 18 |
|
- | ||||
| 36 | 7401P031-60 | Block, Fuse | 18 |
|
- | ||||
| 36 | 4005F445-51 | Cover, Fuse Block | 18 |
|
- |
