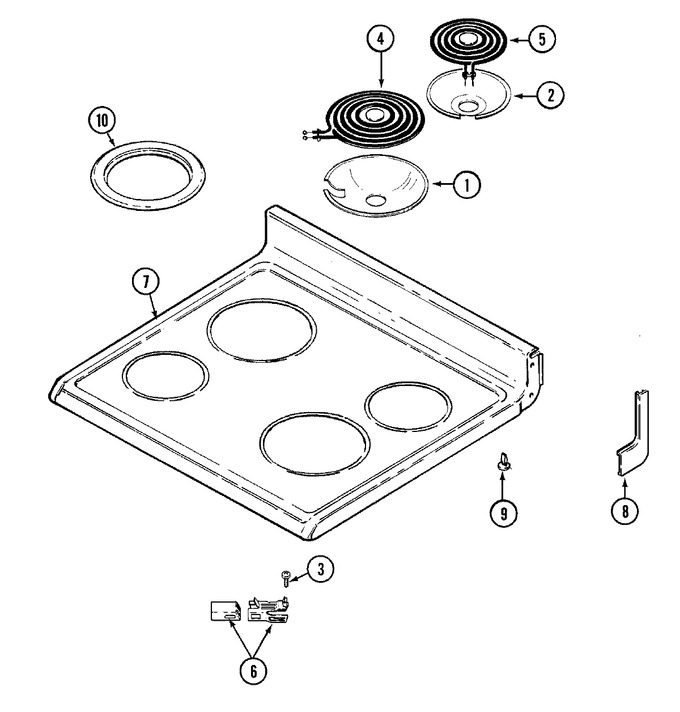

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 715878 | Bowl, Drip (8``) (chr) (Replaces: 7725P019-60) | 18 |
|
Immediately | $ 21.16 | |||
| 2 | 715877 | Bowl, Drip (6``) (chr) (Replaces: 7725P018-60) | 18 |
|
Immediately | $ 19.39 | |||
| 3 | WP74004005 | Screw (Replaces: 7101P349-60) | 18 |
|
$ 6.95 | ||||
| 4 | WPW10259865 | Element (8``) (Replaces: 7406P070-60) | 18 |
|
Immediately | $ 105.92 | |||
| 5 | WPW10259868 | Element (6``) (Replaces: 7406P069-60) | 18 |
|
Immediately | $ 112.28 | |||
| 6 | 12001676 | Kit, Receptacle (Replaces: 1430306K) | 18 |
|
Immediately | $ 28.45 | |||
| 7 | 2002W103-81 | Top, Main (wht) | 18 |
|
- | ||||
| 8 | WP3195558 | Nut, Speed (Replaces: 7103P044-60) | 18 |
|
$ 7.68 | ||||
| 8 | 7746P033-60 | End Cap, Top (lt-wht) | 18 |
|
- | ||||
| 8 | 7746P032-60 | End Cap, Top (rt-wht) | 18 |
|
- | ||||
| 9 | 8016P015-60 | Glide | 18 |
|
$ 5.65 | ||||
| 10 | 7744P053-60 | Ring, Trim (6``) | 18 |
|
- | ||||
| 10 | 19950051A | Ring, Trim (8``) (Replaces: 7744P054-60) | 18 |
|
$ 14.92 |
