SELECT A DIAGRAM

01 - Body


02 - Control Panel


03 - Door/drawer


04 - Oven


05 - Top Assembly

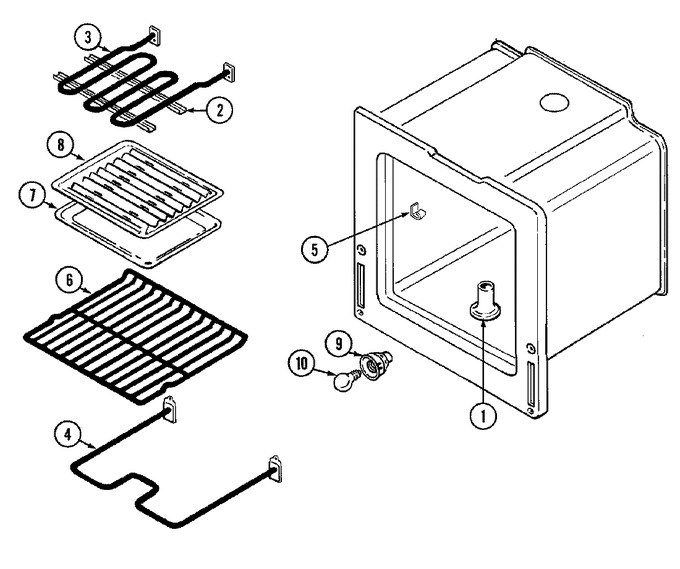

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8026P019-60		Tube, Vent	18	Appelez-nous	-
1	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	18		Immediately	$ 12.62
2	3807F389-45		Support, Element	18	Appelez-nous	-
2	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	18		Immediately	$ 12.62
3	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	18		Immediately	$ 12.62
3	7406P072-60		Element, Broil	18	Appelez-nous	-
4	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	18		Immediately	$ 12.62
4	WP74003019		Element, Bake   (Replaces: Y04000058)	18		Immediately	$ 51.10
5	WP7112P004-60		Clip, Thermostat   (Replaces: 7112P004-60)	18		Immediately	$ 11.07
6	WPW10282492		Rack, Oven   (Replaces: 7801P047-60)	18		Immediately	$ 65.15
7	Y3401F02019		Pan, Broil	18	Appelez-nous	-
8	Y3413F01619		Insert, Broil Pan	18	Appelez-nous	-
9	WP7407P182-60		Receptacle, Bulb   (Replaces: 7407P088-60)	18		Immediately	$ 66.10
10	8009		Bulb-oven   (Replaces: 7407P103-60)	18		Immediately	$ 16.80

    View Diagram in Separate Window       Print Part List
