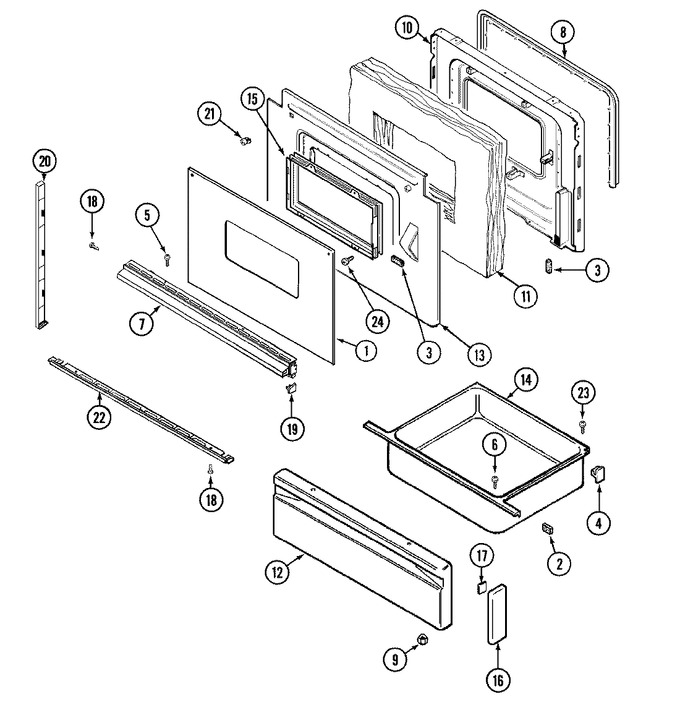

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	7902P328-60		Glass, Door (wht)	18	Appelez-nous	-
2	WP854334		Seal, Rubber   (Replaces: 7208P011-60)	18			$ 11.95
3	8010P085-60		Spacer, Rubber	18	Appelez-nous	-
4	8004P026-60		Support, Drawer (rear)	18			$ 9.29
5	WP98008544		Screw (wht)   (Replaces: 7101P308-60)	18			$ 11.89
6	WP7101P072-60		Screw   (Replaces: 7101P072-60)	18			$ 6.77
7	7701P104-60		Handle, Door (wht)	18	Appelez-nous	-
8	WP7212P043-60		Seal, Door   (Replaces: 7212P043-60)	18		Immediately	$ 56.83
9	WPW10131078		Nut, Lock   (Replaces: 7103P139-60)	18			$ 4.00
10	2402W203-19		Lining, Door	18	Appelez-nous	-
11	4804F050-60		Insulation, Door 2``	18	Appelez-nous	-
12	2416F039-62		Panel, Drawer (wht)	18	Appelez-nous	-
13	3601F236-51		Baffle, Door	18	Appelez-nous	-
14	3405F014-80		Drawer, Storage	18	Appelez-nous	-
15	7907P016-60		Window Asy.	18	Appelez-nous	-
15	3805F002-34		Clamp, Window Assy.	18	Appelez-nous	-
16	7744P069-60		End Cap, Drawer (wht)	18	Appelez-nous	-
17	8270P098-60		Tape	18			$ 5.02
18	W11233072		Screw   (Replaces: 7101P290-60)	18		Immediately	$ 12.62
19	7744P076-60		End Cap (lt)	18	Appelez-nous	-
19	7744P075-60		End Cap (rt)	18	Appelez-nous	-
20	7744P065-60		End Cap, Door (wht)	18	Appelez-nous	-
21	7103P045-60		Nut, Nylon	18	Appelez-nous	-
22	7744P103-60		Trim, Bottom (wht)	18	Appelez-nous	-
23	W11233072		Screw   (Replaces: 7101P290-60)	18		Immediately	$ 12.62
24	W11233072		Screw   (Replaces: 7101P290-60)	18		Immediately	$ 12.62
