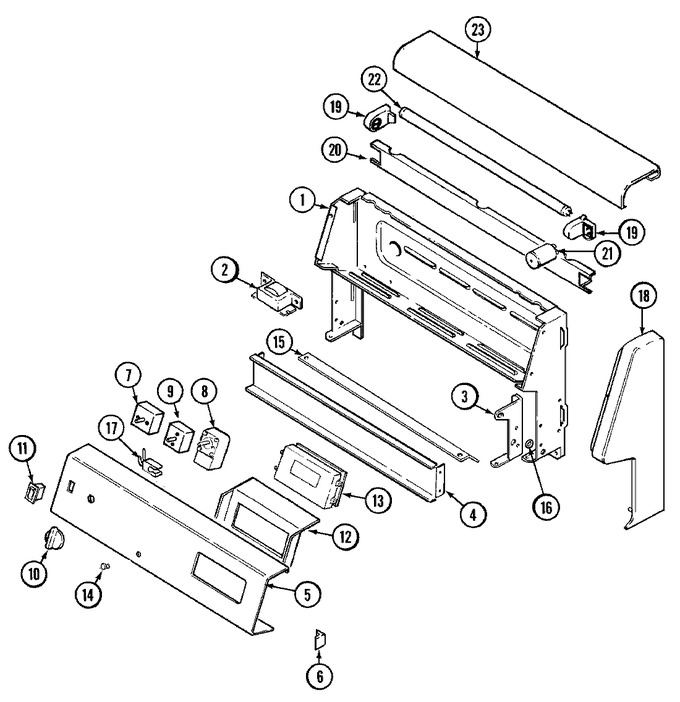

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74002162 | Housing, Control Panel | 18 |
|
- | ||||
| 2 | 7412P007-60 | Ballast | 18 |
|
- | ||||
| 3 | 3418D098-60 | Hinge, Main Top (rt) | 18 |
|
- | ||||
| 3 | 3418D097-60 | Hinge, Main Top (lt) | 18 |
|
- | ||||
| 4 | 3802F088-51 | Brace, Control Panel | 18 |
|
- | ||||
| 5 | 4876S085-59 | Panel, Control | 18 |
|
- | ||||
| 6 | 8010P083-60 | Spacer | 18 |
|
- | ||||
| 7 | WP7403P238-60 | Switch, Infinite (sml Element) (Replaces: 7403P238-60) | 18 |
|
Immediately | $ 57.78 | |||
| 7 | WP7101P309-60 | Screw (Replaces: 7101P309-60) | 18 |
|
Immediately | $ 6.26 | |||
| 7 | WP7403P239-60 | Switch, Infinite (lrg Element) (Replaces: 7403P239-60) | 18 |
|
Immediately | $ 35.10 | |||
| 8 | 7404P105-60 | Thermostat | 18 |
|
$ 208.86 | ||||
| 9 | WP7403P255-60 | Switch, Selector (Replaces: 7403P255-60) | 18 |
|
$ 131.41 | ||||
| 10 | 7737P040-60 | Knob, Infinite (wht) | 18 |
|
- | ||||
| 11 | 7403P314-60 | Switch, Rocker (wht) | 18 |
|
- | ||||
| 12 | 3801F247-45 | Bracket, Clock | 18 |
|
- | ||||
| 13 | 7602P095-60 | Clock | 18 |
|
- | ||||
| 13 | WP8312P015-60 | Shaft, Bit Generator (Replaces: 8312P015-60) | 18 |
|
$ 0.81 | ||||
| 14 | W11690131 | Lens, Indicator Light (Replaces: 7730P012-60) | 18 |
|
$ 6.73 | ||||
| 15 | 3604F201-80 | Shield, Sight | 18 |
|
- | ||||
| 16 | WP3195558 | Nut, Speed (Replaces: 7103P129-60) | 18 |
|
$ 7.68 | ||||
| 17 | W10852510 | Light, Indicator (Replaces: 7407P102-60) | 18 |
|
$ 106.11 | ||||
| 18 | 7726P073-60 | End Cap (rt-wht) | 18 |
|
- | ||||
| 18 | 7726P074-60 | End Cap (lt-wht) | 18 |
|
- | ||||
| 19 | 7408P029-60 | Receptacle, Light (rt) | 18 |
|
- | ||||
| 19 | 7408P030-60 | Receptacle, Snap-in (lt) | 18 |
|
- | ||||
| 20 | 3807F406-71 | Holder, Lamp (wht) | 18 |
|
- | ||||
| 21 | 7415P001-60 | Starter | 18 |
|
- | ||||
| 22 | WP95292 | Light, Control Panel (Replaces: 7407P004-60) | 18 |
|
Immediately | $ 121.45 | |||
| 23 | 7724P059-60 | Cover, Light (wht)----na | 18 |
|
- | ||||
| 24 | 7711P447-60 | Knob, Button Clock Set | 18 |
|
$ 7.85 | ||||
| 25 | WP7711P492-60 | Knob, Clock (wht) (Replaces: 7711P432-60) | 18 |
|
$ 12.13 | ||||
| 26 | 5170D145-60 | Harness, Control Panel | 18 |
|
- | ||||
| 26 | 5175D049-60 | Harness, Panel To Top | 18 |
|
- | ||||
| 27 | 8113P030-60 | Manual, Use & Care | 18 |
|
- | ||||
| 27 | 8113P052-60 | Manual, Use & Care (french) | 18 |
|
- | ||||
| 28 | 16002081 | Guide, Quick Ref - Norge | 18 |
|
- |
