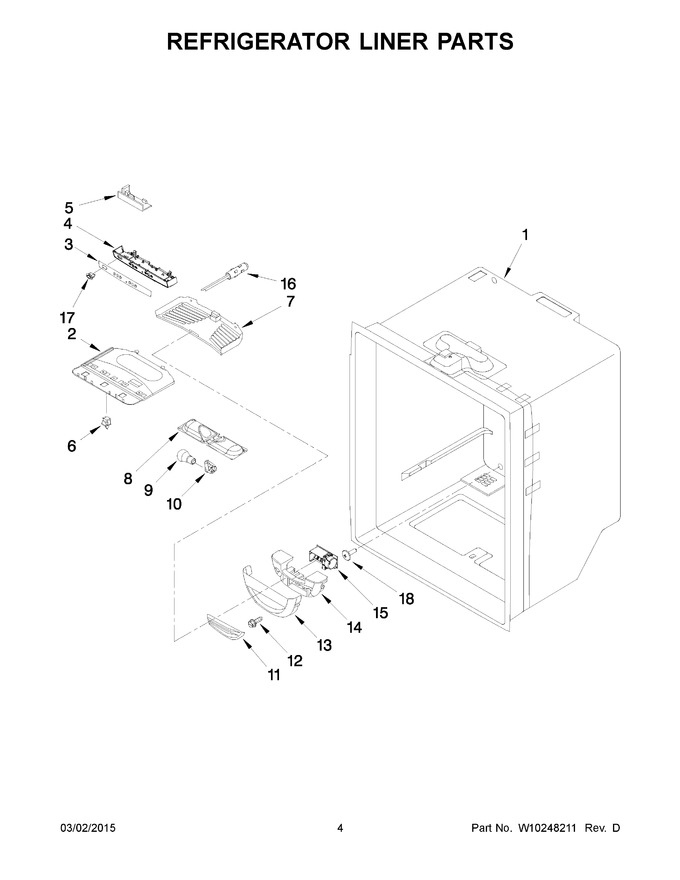

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Liner (not A Serviceable Part)		Appelez-nous	-
2	12806303		Module, Light		Appelez-nous	-
3	W10180451		Overlay, Control				$ 36.07
4	12806407SP		Module, Control		Appelez-nous	-
5	WPW10503278		Control, Electronic   (Replaces: 12868513)			Immediately	$ 49.90
6	W11291138		Switch, Rocker   (Replaces: 12466104)			Immediately	$ 33.00
7	W11284721		Cover, Light   (Replaces: 12806501)				$ 90.87
8	12806601		Housing, Light   (Replaces: 12806601V)				$ 94.46
9	W11679940		Bulb, Light   (Replaces: W10194422V)			Immediately	$ 10.17
10	W11447232		Socket, Light   (Replaces: 12570701V)			Immediately	$ 11.89
11	67003900		Insert, Damper Cover   (Replaces: 12806801)			Immediately	$ 7.33
12	W11772394		Screw   (Replaces: 12990604)			Immediately	$ 10.94
13	WP12806701		Cover, Damper   (Replaces: 12806701)				$ 101.70
14	W11750607		Insulation, Damper   (Replaces: 13012402)				$ 42.98
15	WPW10196393		Damper, Control   (Replaces: W10196393)			Immediately	$ 149.46
16	12002355		Thermistor			Immediately	$ 42.62
17	W11478401		Switch, Energy Saver   (Replaces: 12861601)			Immediately	$ 123.95
18	A3076901		Plug, Button (black)				$ 5.70
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W11478401		Harness, Light (includes Thermistors)   (Replaces: W10216622)			Immediately	$ 123.95

    View Diagram in Separate Window       Print Part List
