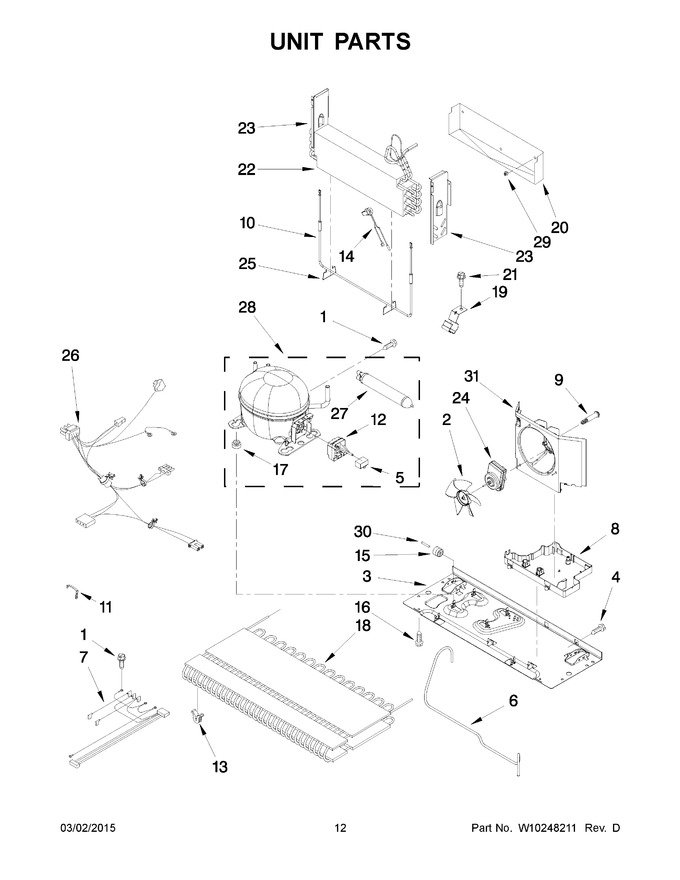

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 12992301 | Screw |
|
$ 7.32 | |||||
| 2 | WP12825803 | Blade, Fan (Replaces: 12825803) |
|
Immediately | $ 67.61 | ||||
| 3 | W10480110 | Basepan (Replaces: W10210983) |
|
$ 144.67 | |||||
| 4 | 67006425 | Screw (Replaces: 12990511) |
|
Immediately | $ 6.26 | ||||
| 5 | WPW10662129 | Capacitor (Replaces: 2264017) |
|
Immediately | $ 52.97 | ||||
| 6 | W10306059 | Tube, Discharge (Replaces: W10183709) |
|
$ 111.06 | |||||
| 7 | W10224241 | Harness, Evaporator Heater |
|
$ 117.62 | |||||
| 8 | WPW10655367 | Pan, Drain (Replaces: W10189185) |
|
Immediately | $ 76.65 | ||||
| 9 | W10829281 | Screw (Replaces: W10216919) |
|
$ 11.39 | |||||
| 10 | WP12729128 | Heater, Defrost (Replaces: 12729128) |
|
Immediately | $ 87.94 | ||||
| 11 | W10204187 | Strap, Bale |
|
- | |||||
| 12 | WPW10194431 | Device, Combination Start (start Relay And Overload) (Replaces: W10194431) |
|
Immediately | $ 78.17 | ||||
| 13 | WPW10137529 | Grommet, Condenser (Replaces: W10137529) |
|
$ 7.51 | |||||
| 14 | WPW10165425 | Thermostat (Replaces: 12639324SP) |
|
Immediately | $ 67.11 | ||||
| 15 | 12477102 | Roller |
|
Immediately | $ 6.64 | ||||
| 16 | 12992101 | Screw |
|
- | |||||
| 17 | WPW10169124 | Grommet, Compressor (Replaces: 10835903SP) |
|
Immediately | $ 6.47 | ||||
| 18 | WPW10346420 | Condenser (Replaces: W10135027) |
|
$ 252.31 | |||||
| 19 | 10547003 | Clip, Drier |
|
- | |||||
| 20 | WPW10292802 | Tray, Drip (Replaces: 12225402WD) |
|
$ 159.07 | |||||
| 21 | WP33001882 | Screw (Replaces: 12990701) |
|
$ 71.75 | |||||
| 22 | 12001919 | Evaporator |
|
$ 352.16 | |||||
| 23 | 12225602 | Dam (left Hand) |
|
$ 14.66 | |||||
| 24 | W11613295 | Motor, Fan (Replaces: 12825101) |
|
Immediately | $ 123.16 | ||||
| 25 | W11673433 | Clip, Heater (Replaces: 10428101) |
|
$ 127.01 | |||||
| 26 | WPW10234024 | Harness, Unit (includes Power Cord) (Replaces: W10234024) |
|
$ 264.30 | |||||
| 27 | WPW10143759 | Drier (Replaces: W10143759) |
|
Immediately | $ 27.70 | ||||
| 28 | W10160407 | Compressor (Replaces: W10134623) |
|
Immediately | $ 539.93 | ||||
| 29 | 10623002 | Clip, Evaporator |
|
$ 10.38 | |||||
| 30 | 67006434 | Axle, Roller (Replaces: 12477202) |
|
Immediately | $ 6.77 | ||||
| 31 | W11556315 | Shroud, Condenser Fan (Replaces: W10189184) |
|
$ 71.69 | |||||
| 23A | 12225702 | Dam (right Hand) |
|
$ 14.09 | |||||
| NI | SF5538 | Valve, Access (Replaces: 978027) |
|
$ 19.48 | |||||
| NI | 978028 | Valve, Access |
|
- | |||||
| NI | 978029 | Valve, Access |
|
$ 93.85 | |||||
| NI | 978030 | Valve, Access |
|
$ 117.64 | |||||
| NI | 876764 | Valve, Access |
|
Immediately | $ 82.22 | ||||
| NI | WP978025 | Valve, Access (Replaces: 978025) |
|
Immediately | $ 94.73 | ||||
| NI | N/P | Refrigerant Charge 5.25 Oz. (r-134a) |
|
- | |||||
| NI | 978026 | Valve, Access |
|
Immediately | $ 115.28 |
