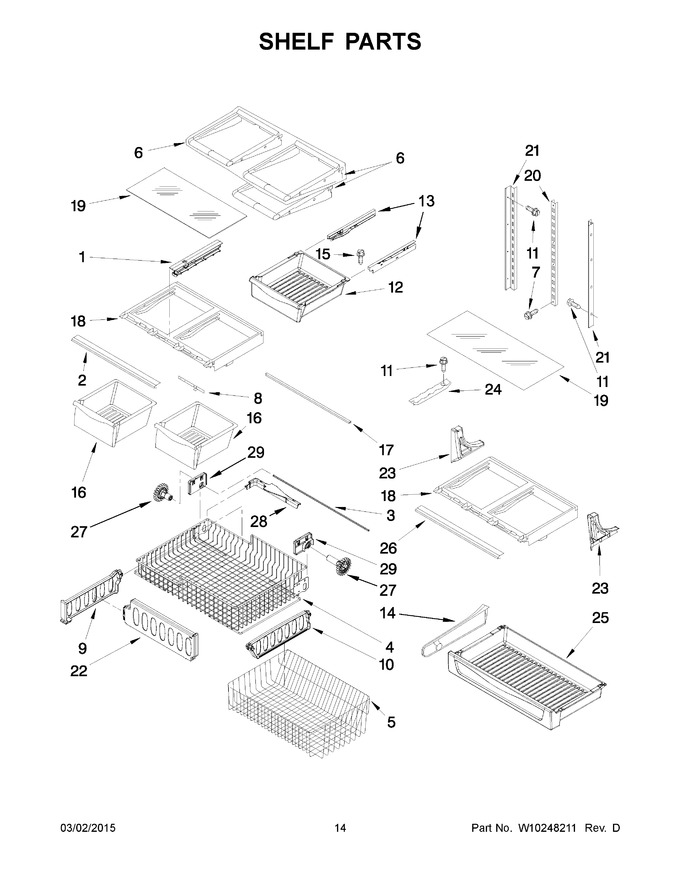

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10671238 | Rail, Center Crisper (Replaces: 12530701) |
|
Immediately | $ 101.54 | ||||
| 2 | WPW10231482 | Trim, Crisper (Replaces: W10231482) |
|
$ 101.75 | |||||
| 3 | W10802339 | Shaft, Rack (Replaces: 12812905WD) |
|
$ 89.29 | |||||
| 4 | W10348238 | Basket, Freezer (upper) (Replaces: W10169950) |
|
$ 195.54 | |||||
| 5 | WPW10503183 | Basket, Freezer (lower) (Replaces: W10150038) |
|
Immediately | $ 213.73 | ||||
| 6 | W11402523 | Shelf, Stationary (Replaces: 12463509) |
|
Immediately | $ 199.25 | ||||
| 7 | W10709795 | Screw (Replaces: 12990515) |
|
$ 11.82 | |||||
| 8 | WP67005864 | Slide, Humidity Control (Replaces: 12530805SP) |
|
Immediately | $ 7.03 | ||||
| 9 | W10241046 | Divider, Basket (upper) |
|
Immediately | $ 25.02 | ||||
| 10 | W10205416 | Divider, Basket (lower) |
|
- | |||||
| 11 | 67006425 | Screw (Replaces: 12990513) |
|
Immediately | $ 6.26 | ||||
| 12 | WP67001314 | Pan, Deli (Replaces: 12656404) |
|
Immediately | $ 139.80 | ||||
| 13 | WP67001054 | Glide, Deli (left Hand) (Replaces: 12656601) |
|
Immediately | $ 7.56 | ||||
| 14 | 12707601 | Divider, Pantry |
|
- | |||||
| 15 | W10854958 | Screw (Replaces: 12990302) |
|
$ 6.69 | |||||
| 16 | WP67002633 | Pan, Crisper (Replaces: 12530505) |
|
Immediately | $ 134.21 | ||||
| 17 | WP12227303WD | Brace, Crisper Cover (Replaces: 12227303WD) |
|
$ 95.36 | |||||
| 18 | WPW10568041 | Frame, Crisper (Replaces: 12530401SP) |
|
Immediately | $ 123.51 | ||||
| 19 | WP67006878 | Glass, Crisper (Replaces: 12204822) |
|
Immediately | $ 166.67 | ||||
| 20 | 67001073 | Ladder, Center (Replaces: 12435807) |
|
$ 48.76 | |||||
| 21 | 12710602 | Ladder, Side |
|
- | |||||
| 22 | W10311695 | Divider, Basket (upper) (Replaces: W10171570) |
|
$ 25.88 | |||||
| 23 | WP67001721 | Support, Crisper Frame (left Hand) (Replaces: 12531001) |
|
Immediately | $ 7.83 | ||||
| 24 | WP67001719 | Track, Deli Drawer (Replaces: 12531901) |
|
Immediately | $ 7.70 | ||||
| 25 | 12645027 | Drawer, Pantry |
|
- | |||||
| 26 | W10656986 | Trim, Pantry Front (Replaces: W10231334) |
|
$ 106.39 | |||||
| 27 | WPW10474715 | Gear, Spur (left Hand) (Replaces: W10146446) |
|
Immediately | $ 28.08 | ||||
| 28 | W10149389 | Lift, Bail Arm |
|
$ 79.43 | |||||
| 29 | W10348259 | Mount, Gear (left Hand) (Replaces: W10233898) |
|
$ 77.03 | |||||
| 13A | WP67001053 | Glide, Deli (right Hand) (Replaces: 12656602) |
|
Immediately | $ 8.32 | ||||
| 23A | WP67001722 | Support, Crisper Frame (right Hand) (Replaces: 12531002) |
|
Immediately | $ 8.04 | ||||
| 27A | WPW10474716 | Gear, Spur (right Hand) (Replaces: W10158749) |
|
Immediately | $ 27.79 | ||||
| 29A | W10348260 | Mount, Gear (right Hand) (Replaces: W10233899) |
|
$ 77.06 |
