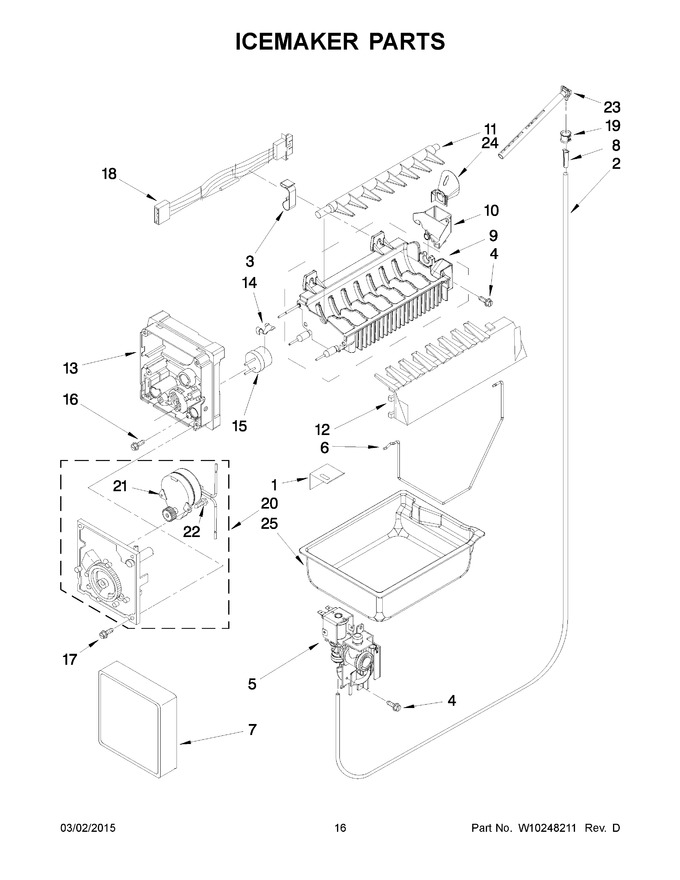

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP2256087 | Bracket, Ice Maker (Replaces: 2256086) |
|
$ 83.70 | |||||
| 2 | WPB5705307 | Tube, Plastic (Replaces: B5705331SP) |
|
$ 11.19 | |||||
| 3 | 10526702 | Clamp, Wire |
|
- | |||||
| 4 | WP681249 | Screw (Replaces: 489276) |
|
Immediately | $ 7.07 | ||||
| 5 | WP2315576 | Valve, Water Inlet (Replaces: W10219716) |
|
Immediately | $ 86.38 | ||||
| 6 | WP67004028 | Arm, Shut Off (Replaces: 12868001) |
|
$ 82.22 | |||||
| 7 | WPW10289690 | Cover, Front (Replaces: 12582501) |
|
Immediately | $ 7.56 | ||||
| 8 | WPA3223101 | Insert, Tube (Replaces: A3223101SP) |
|
Immediately | $ 7.04 | ||||
| 9 | WPW10190929 | Assembly, Mold And Heater (Replaces: W10122527) |
|
$ 209.84 | |||||
| 10 | W10122561 | Cup, Water Fill (Replaces: 628515) |
|
$ 24.99 | |||||
| 11 | WP627843 | Ejector (Replaces: 627843) |
|
$ 75.24 | |||||
| 12 | WP2182124 | Stripper, Ice (Replaces: 2182124) |
|
$ 77.45 | |||||
| 13 | WP2195914 | Support, Housing (Replaces: 2194712) |
|
$ 94.11 | |||||
| 14 | WP2315522 | Retainer, Thermostat (Replaces: 2315522) |
|
$ 9.95 | |||||
| 15 | WP627985 | Thermostat (Replaces: 627985) |
|
Immediately | $ 98.26 | ||||
| 16 | 8533917 | Screw |
|
$ 12.03 | |||||
| 17 | WP489464 | Screw (Replaces: 489464) |
|
Immediately | $ 7.05 | ||||
| 18 | WPD7813010 | Harness, Icemaker (Replaces: W10146389) |
|
Immediately | $ 66.57 | ||||
| 19 | WPM0114003 | Clip, Speed (Replaces: M0114003SP) |
|
$ 9.95 | |||||
| 20 | 8201515 | Assembly, Module And Motor (Replaces: W10223929) |
|
Immediately | $ 127.48 | ||||
| 21 | N/P | Motor (not Available, Order #20) |
|
- | |||||
| 22 | 489136 | Screw |
|
$ 9.26 | |||||
| 23 | W11176463 | Elbow, Fill Tube (Replaces: 10463203SP) |
|
Immediately | $ 102.74 | ||||
| 24 | 12918001 | Funnel, Fill Tube |
|
Immediately | $ 11.17 | ||||
| 25 | WPW10171529 | Pan, Ice (Replaces: W10171529) |
|
Immediately | $ 162.47 | ||||
| 100 | D7824706Q | Icemaker Assembly (complete) (Replaces: W10190978) |
|
Immediately | $ 150.62 |
