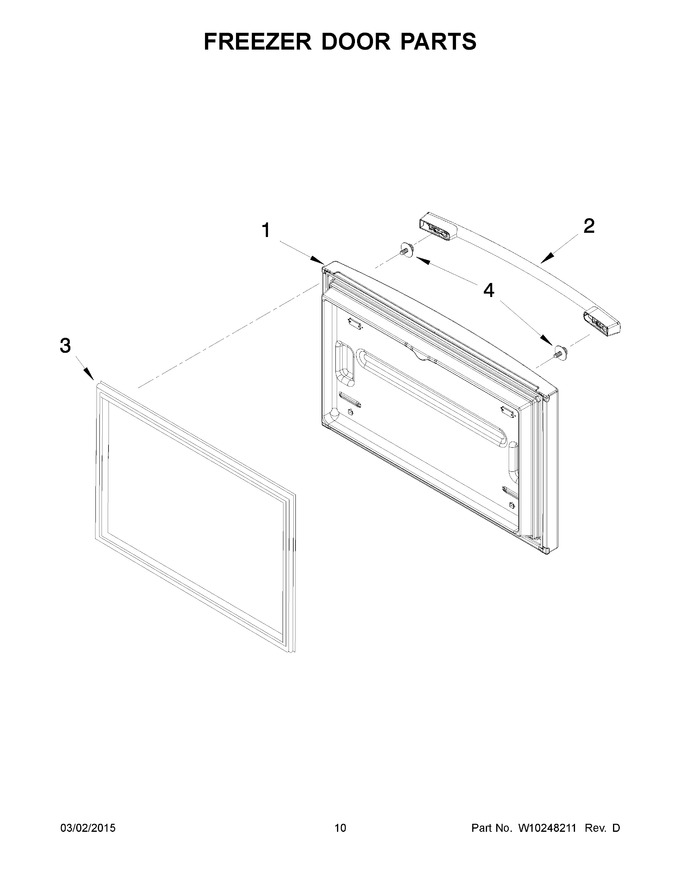

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 12977869WQ | Door, Freezer (white) (Replaces: W10258324) |
|
$ 875.72 | |||||
| 2 | W10189639 | Handle, Door (white) |
|
$ 82.82 | |||||
| 3 | W10443315 | Gasket, Door (white) (Replaces: W10164036) |
|
$ 174.58 | |||||
| 4 | WP12992902 | Screw (Replaces: 12992902) |
|
$ 9.96 | |||||
| 1A | W10258325 | Door, Freezer (black) |
|
- | |||||
| 1B | W10270616 | Door, Freezer (biscuit/bisque) |
|
- | |||||
| 1C | 12977821DQ | Door, Freezer (universal Silver) |
|
- | |||||
| 1D | 12977822LQ | Door, Freezer (satina) |
|
- | |||||
| 1E | 12977822SQ | Door, Freezer (stainless) |
|
$ 457.11 | |||||
| 2A | W10189640 | Handle, Door (black) |
|
- | |||||
| 2B | W10189641 | Handle, Door (biscuit/bisque) |
|
- | |||||
| 2C | W10189642 | Handle, Door (stainless) |
|
- | |||||
| 3A | WPW10436250 | Gasket, Door (black) (Replaces: W10164037) |
|
Immediately | $ 313.19 | ||||
| 3B | W10443316 | Gasket, Door (grey) (Replaces: W10180623) |
|
$ 218.31 |
