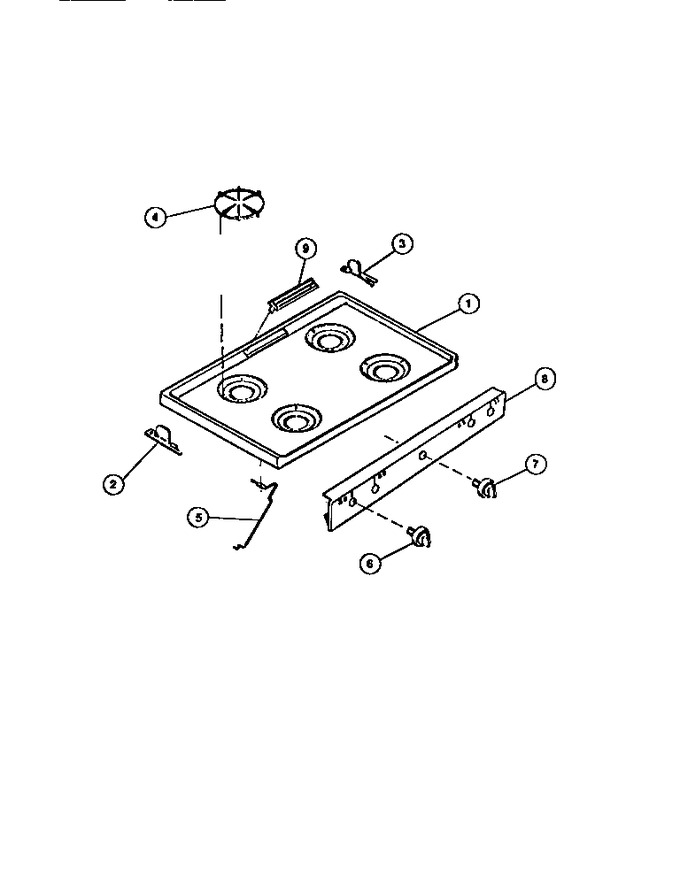

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3934036 | Main Top - Wheat |
|
- | |||||
| 2 | 3011558 | Brkt-hinge Lh |
|
- | |||||
| 3 | 3011559 | Brkt-hinge Rh |
|
- | |||||
| 4 | 283T013W01-18 | Grate (4) |
|
- | |||||
| 5 | 3013818 | Rod - Maintop Supt. |
|
- | |||||
| 6 | 3131910 | Knob-top Valve (4) |
|
- | |||||
| 7 | 3131703 | Knob-thermo |
|
- | |||||
| 8 | 3015393 | Panel-manifold |
|
- | |||||
| 9 | 3131190 | Cover-vent |
|
- | |||||
| *19534 | 612T124P01 | Retainer - Wire |
|
- |
