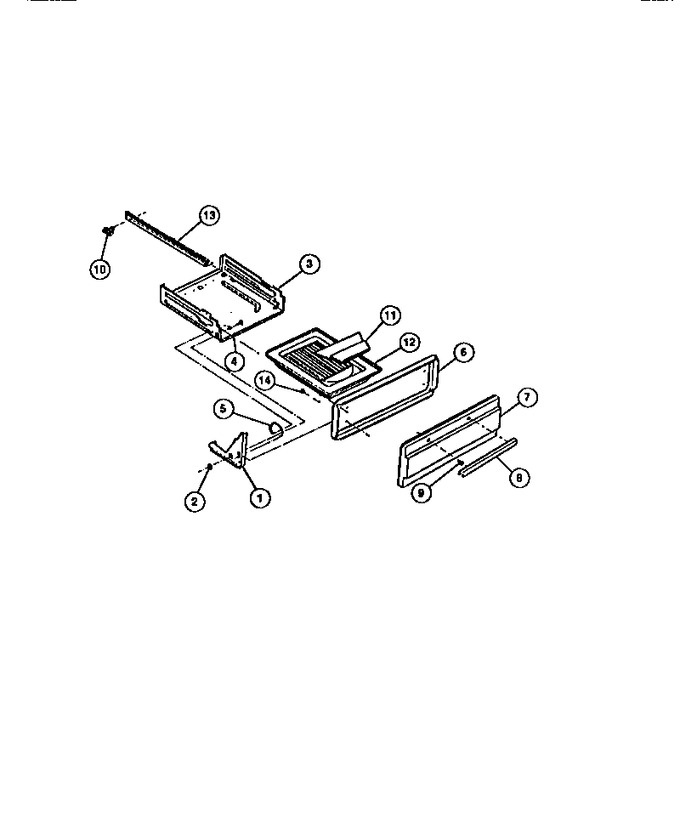

01 - Cover
02 - Backguard And Control Parts
03 - Cooktop Parts
04 - Broiler Drawer Parts
05 - Door Parts
06 - Burner Parts
07 - Body Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3200673 | Brkt. Broiler Hnge. Lh |
|
- | |||||
| 2 | 3131386 | Fstnr, Push Nut (2) |
|
- | |||||
| 3 | 3018608 | Body, Broiler |
|
- | |||||
| 4 | 3018614 | Pin-hinge |
|
- | |||||
| 5 | 3018618 | Spring, Broiler Lh C Type |
|
- | |||||
| 6 | 3018611 | Liner - Broiler Drwr |
|
- | |||||
| 7 | 3051378 | Pnl Drawer Wheat |
|
- | |||||
| 8 | 296T117P02 | Handle |
|
- | |||||
| 9 | 3131387 | Fstnr, Spacer (2) |
|
- | |||||
| 10 | 3018610 | Glide-broiler (6) |
|
$ 29.40 | |||||
| 11 | 3131487 | Shield Brlr Swap. |
|
- | |||||
| 12 | 539T005F01-86 | Pan Broiler |
|
- | |||||
| 13 | 3131153 | Channel, Broiler (4) |
|
- | |||||
| 14 | 3018702 | Plug-broil Drwr. (4) |
|
- | |||||
| *19537 | 636T143P01 | Screw |
|
- | |||||
| *19537 | 3131258 | Insul Brl Drwr |
|
- | |||||
| *19537 | 636T162P01 | Screw (2) |
|
- | |||||
| 1A | 3018860 | Brkt. Broiler Hnge. Rh |
|
- | |||||
| 5A | 3018619 | Spring, Broiler, Rh, C Type |
|
- |
