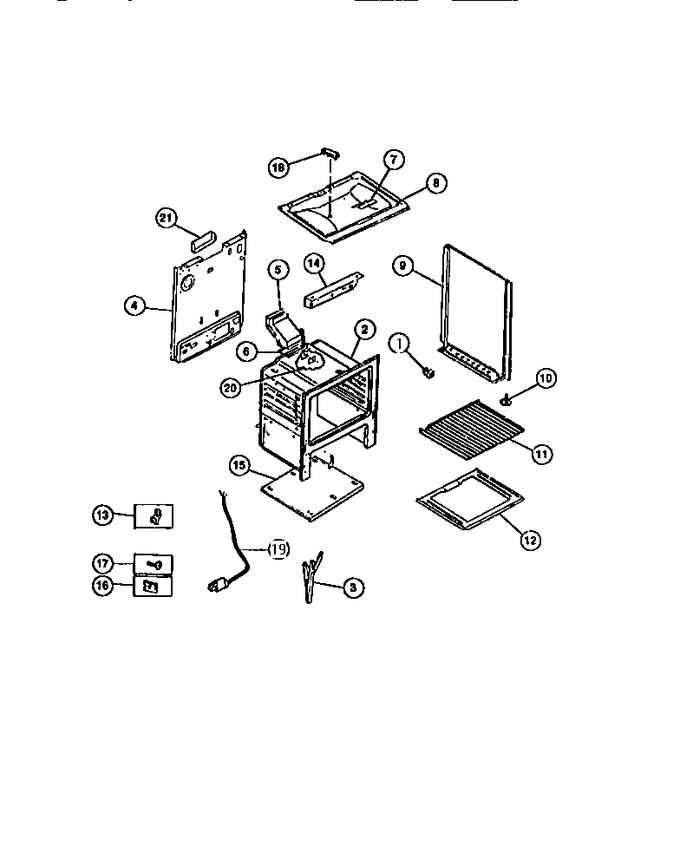

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3014099		Spacer B/s				$ 3.62
3	3131569		Channel Dr Hng (2)		Appelez-nous	-
4	3131567		Back, Main		Appelez-nous	-
5	3131909		Flue		Appelez-nous	-
6	3131355		Gasket, Flue		Appelez-nous	-
7	3131101		Cover, Plate		Appelez-nous	-
8	3131185		Burner Box		Appelez-nous	-
9	3131477		Pnl. B/s (rh Wheat)		Appelez-nous	-
9	3200791		Pnl. B/s Rh-wheat		Appelez-nous	-
10	08010569		Screw, Leveling (4)		Appelez-nous	-
11	3131973		Rack		Appelez-nous	-
12	3011519		Bottom-oven		Appelez-nous	-
13	3011805		Clip - Thermo Bulb		Appelez-nous	-
14	3131191		Cover, Flue		Appelez-nous	-
15	3131180		Base, Broil		Appelez-nous	-
16	3012323		Fstnr - 8 U Type (2)		Appelez-nous	-
17	316282700		Screw, Ovn Bttm   (Replaces: 3131732)				$ 9.93
18	3015371		Cover-burner Box		Appelez-nous	-
19	5304534000		Cord, Power   (Replaces: 3131425)			Immediately	$ 33.37
20	3018607		Cover Plate				$ 10.50
21	3131660		Shield, Rear Wall		Appelez-nous	-
12A	3017142		Insul - Oven Wrap (non-illustrated)				$ 193.50
12B	3131246		Insul Back (non-illustrated)		Appelez-nous	-
14A	3014226		Support (non-illustrated)		Appelez-nous	-
17A	3051218		Plate-oven Light (non-illustrated)		Appelez-nous	-
17B	3015372		Cover-front Main (non-illustrated)		Appelez-nous	-
20A	3131244		Cover-power Cord, (non-illustrated)		Appelez-nous	-
20B	3012327		Fstnr-power Cord (non-illustrated)		Appelez-nous	-
9A	3131478		Pnl. B/s (lh Wheat)		Appelez-nous	-
9A	3200794		Pnl. B/s Lh-wheat		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
