SELECT A DIAGRAM

01 - Cover


02 - Backguard And Control Parts


03 - Cooktop Parts


04 - Broiler Drawer Parts


05 - Door Parts


06 - Burner Parts


07 - Body Parts

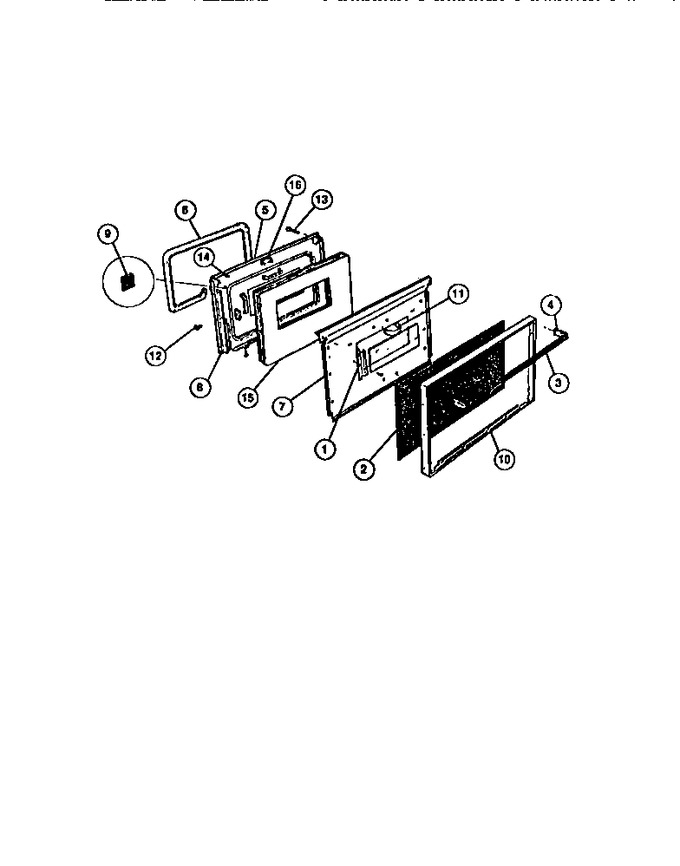

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	3051153		Glass Frnt, Black		Appelez-nous	-
3	3131345		Handle, Oven Door		Appelez-nous	-
4	3016755		End Caps-black		Appelez-nous	-
5	3201692		Liner, Oven Door		Appelez-nous	-
6	3051225		Seal-non S/c		Appelez-nous	-
7	3201693		Shield, Wool		Appelez-nous	-
8	3131323		Support, Glass		Appelez-nous	-
9	3934033		Seal, Foam		Appelez-nous	-
10	3131128		Trim Oven Dr		Appelez-nous	-
11	3131720		Clip, Retainer		Appelez-nous	-
12	3131974		Screw Handle		Appelez-nous	-
14	3131254		Fstnr Spacer		Appelez-nous	-
15	3131208		Insul. Oven Dr		Appelez-nous	-
16	3015371		Cover-dr Liner		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
