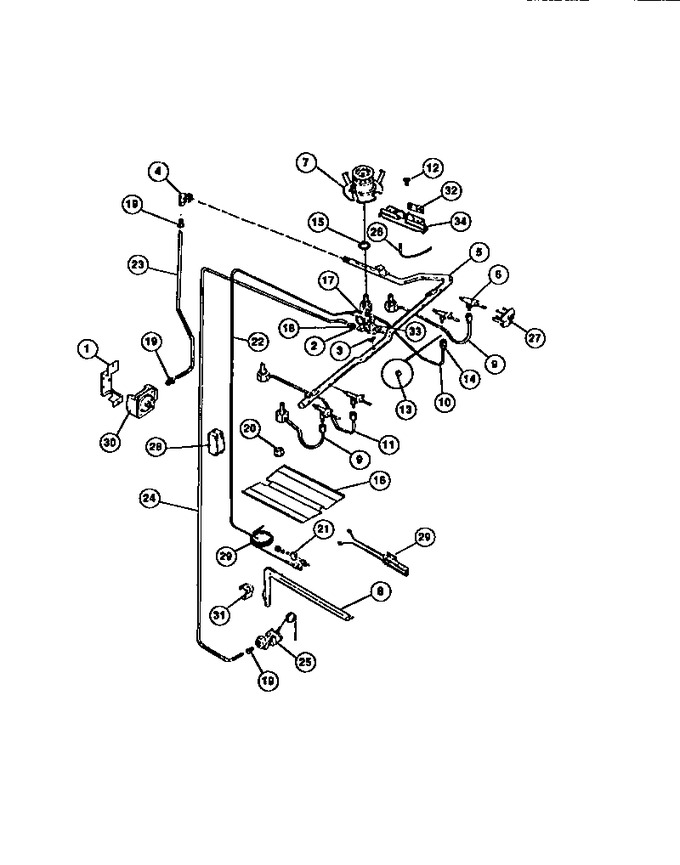

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
02 - Backguard And Control Parts
03 - Cooktop Parts
04 - Broiler Drawer Parts
05 - Door Parts
06 - Burner Parts
07 - Body Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3131183 | Bracket Regulator |
|
- | |||||
| 2 | 722T073P01 | Thermostat |
|
- | |||||
| 3 | 3018601 | Adapter-thermo |
|
- | |||||
| 4 | 215T013P01 | Elbow |
|
- | |||||
| 5 | 439T055P07 | Manifold Pipe |
|
- | |||||
| 6 | 3012542 | Valve-3 Pos. (4) |
|
- | |||||
| 7 | 3011567 | Burner Top (4) |
|
- | |||||
| 8 | 3131571 | Burner, Oven |
|
- | |||||
| 9 | 3131970 | Burner Tube Lf |
|
- | |||||
| 10 | 079T033H02 | Burner, Tube |
|
- | |||||
| 11 | 079T033H03 | Burner Tube, Left Rear |
|
- | |||||
| 12 | 3051420 | Pop Rivet |
|
- | |||||
| 13 | 3012358 | Ferrule (4) |
|
- | |||||
| 14 | 3131148 | Nut Compression (4) |
|
- | |||||
| 15 | 479T069P40 | Nut, Special (4) |
|
- | |||||
| 16 | 3131327 | Baffle, Oven |
|
- | |||||
| 17 | 3131404 | Fitting, Loxit |
|
- | |||||
| 18 | 3131403 | Fitting, Loxit |
|
- | |||||
| 19 | 3131261 | Fitting, Loxit |
|
- | |||||
| 20 | 479T069P03 | Nut, Baffle |
|
- | |||||
| 21 | 3018613 | Pilot-oven |
|
- | |||||
| 22 | 3018623 | Tube-ovn Pilot 3/16 |
|
- | |||||
| 23 | 3014477 | Tube - Alum 3/8 |
|
- | |||||
| 24 | 3018624 | Tube-alum. 3/8 |
|
- | |||||
| 25 | 3131405 | Valve-safety |
|
- | |||||
| 26 | 316T034P02 | Igniter-elec. Top Burner |
|
- | |||||
| 27 | 695T225P02 | Switch Ign. (4) |
|
- | |||||
| 28 | 3200332 | Igniter-module |
|
- | |||||
| 29 | 3934047 | Igniter-elect. |
|
- | |||||
| 30 | 3018606 | Control-regul |
|
- | |||||
| 31 | 3018603 | Brkt. Ovn. Burner Supt. |
|
- | |||||
| 32 | 612T121F01 | Retainer Ign. |
|
- | |||||
| 34 | 695T220P01 | Oven-igniter Switch |
|
- | |||||
| 35 | 136T355W03 | Channel, Flash Tube |
|
- |
