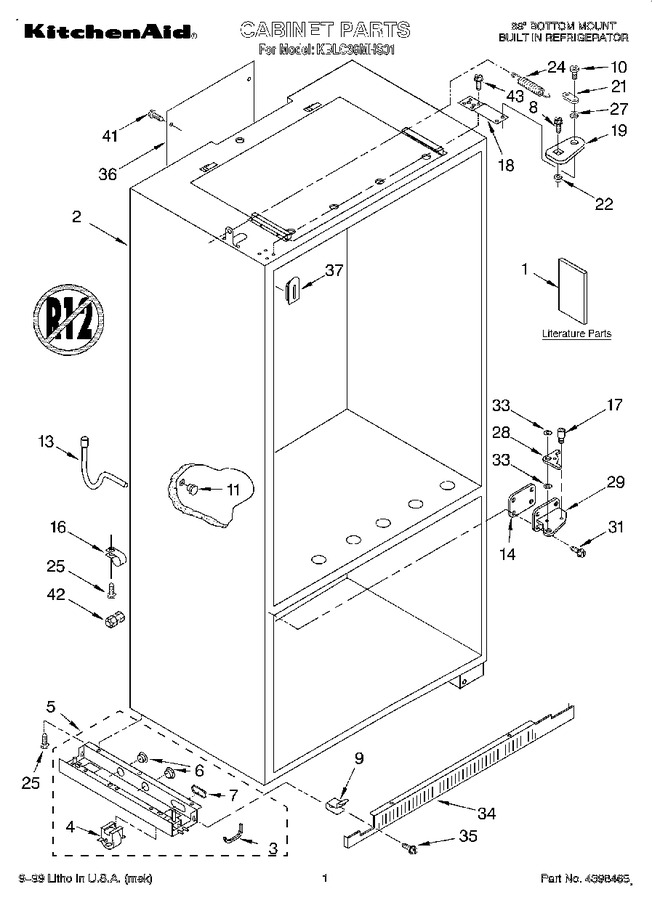

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT2005214 | Literature Parts (installation Instructions) |
|
- | |||||
| 1 | LIT2005193 | Literature Parts (use & Care Guide) |
|
- | |||||
| 1 | LIT2005194 | Literature Parts (energy Label) |
|
- | |||||
| 1 | LIT2207484 | Literature Parts (service & Wiring Sheet) |
|
- | |||||
| 1 | LIT628370 | Modular Icemaker Service Sheet |
|
- | |||||
| 2 | N/A | Cabinet (not A Serviceable Part) |
|
- | |||||
| 3 | 2005004 | Grommet, Tube Crossover |
|
- | |||||
| 4 | WPW10138054 | Roller, Front & Rear (4) (Replaces: 1112023) |
|
$ 38.86 | |||||
| 5 | W10860229 | Support, Leveler Assembly (freezer Side) (Replaces: 2004505) |
|
$ 327.29 | |||||
| 5 | W10860448 | Support, Leveler Assembly (refrigerator Side) (Replaces: 2004506) |
|
Immediately | $ 328.28 | ||||
| 6 | 2005006 | Grommet, Wiring |
|
- | |||||
| 7 | 2207430 | Grommet, Flexible |
|
- | |||||
| 8 | 2001297 | Screw |
|
- | |||||
| 9 | 2006442 | Mounting Bracket, Grill |
|
- | |||||
| 10 | 2005921 | Screw |
|
$ 7.65 | |||||
| 11 | 1112849 | Cap, Grommet |
|
- | |||||
| 13 | 2204516 | Tube, Drain Condensate |
|
- | |||||
| 14 | 2207470 | Shim-hinge, Door |
|
Immediately | $ 44.80 | ||||
| 16 | 488946 | Tube, Clamp |
|
$ 18.41 | |||||
| 17 | 2001295 | Screw, Door Stop |
|
$ 42.18 | |||||
| 18 | 2257644 | Hinge, Door Refrigerator Top (Replaces: 2005295) |
|
$ 152.55 | |||||
| 19 | 2205783 | Cam-closer, Door |
|
- | |||||
| 21 | 2207534 | Closer-extension, Door |
|
- | |||||
| 22 | 2002903 | Bushing |
|
$ 34.41 | |||||
| 24 | WP2004517 | Spring, Door Closure (Replaces: 2004517) |
|
Immediately | $ 81.80 | ||||
| 25 | W11624204 | Screw (Replaces: 486194) |
|
$ 12.62 | |||||
| 27 | 2005920 | Bushing-arm, Extension |
|
- | |||||
| 28 | W10188434 | Gap, Cover (bottom) (Replaces: 2006388) |
|
$ 58.24 | |||||
| 29 | 2005101 | Hinge, Bottom Refrigerator |
|
$ 83.86 | |||||
| 31 | W11474472 | Screw (Replaces: 3400060) |
|
Immediately | $ 7.22 | ||||
| 33 | WP2006346 | Washer (Replaces: 2006346) |
|
Immediately | $ 10.08 | ||||
| 34 | 2004530 | Grille Base, Front |
|
- | |||||
| 35 | 489238 | Screw |
|
- | |||||
| 36 | 2004512 | Cover, Rear |
|
- | |||||
| 37 | 2207518 | Grommet, Wiring |
|
- | |||||
| 41 | WP1163283 | Screw (Replaces: 1163283) |
|
$ 6.47 | |||||
| 42 | WP4211117 | Union (Replaces: 2150347) |
|
$ 8.96 | |||||
| 43 | WP8204624 | Screw (4) (Replaces: 2001415) |
|
$ 14.99 |
