Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 2005256 Cabinet, Trim Right Side Appelez-nous -
1 2005493 Cabinet, Trim Left Side Appelez-nous -
2 2003857 Screw Appelez-nous -
3 487246 Repair, Screw Appelez-nous -
3 WP1163283 Screw   (Replaces: 1163283) Special Order $ 6.47

4 2004536 Cabinet, Trim (bottom) Appelez-nous -
5 W11624204 Screw   (Replaces: 486194) Special Order $ 12.62

6 2003645 Cabinet, Trim Top Appelez-nous -
7 2005786 Breaker Trim Appelez-nous -
8 2005782 Cover, Hinge Special Order $ 12.04

9 2005925 Seal, Side Trim Special Order $ 83.72

10 WP489464 Screw   (Replaces: 489464) In-Stock Immediately $ 7.05


    View Diagram in Separate Window     Print Icon   Print Part List

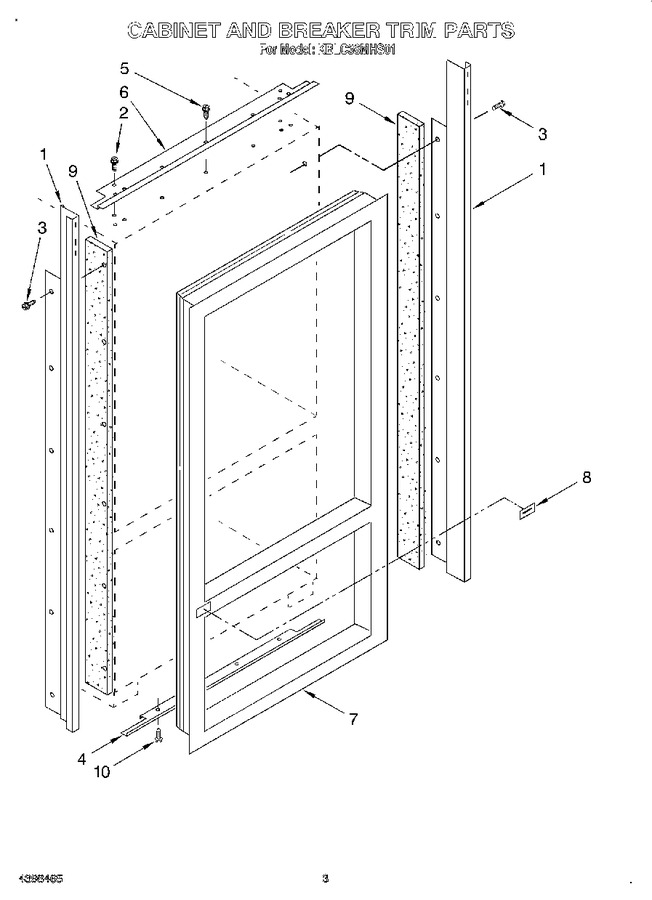

Diagram for KBLC36MHS01
