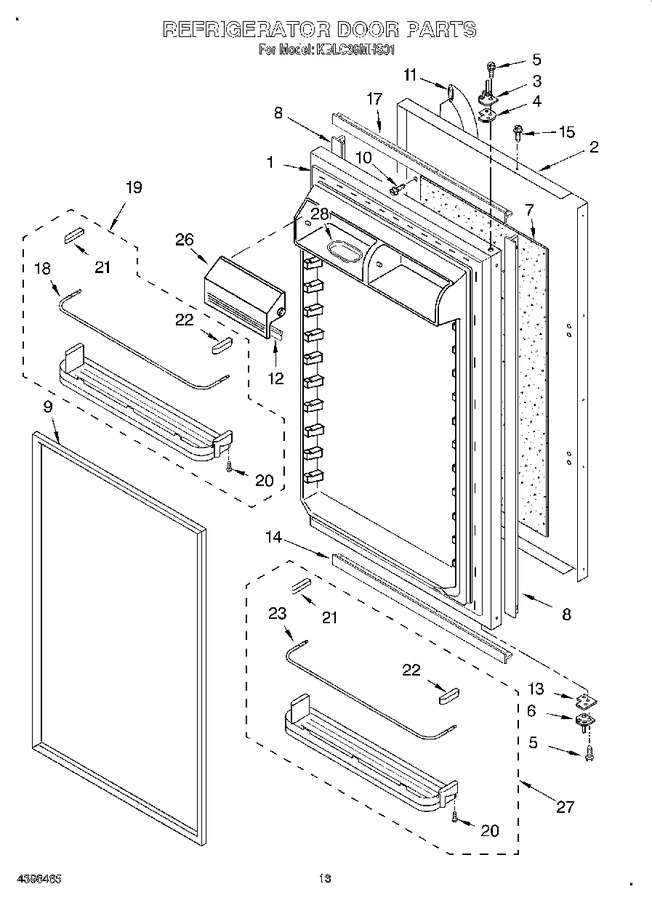

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2005168		Refrigerator Door (includes Item 9)		Appelez-nous	-
2	2005396		Skin, Door		Appelez-nous	-
3	2005171		Hinge Assembly, Top		Appelez-nous	-
4	2004520		Spacer-hinge, Top		Appelez-nous	-
5	W11474472		Screw, 10-32 X .750   (Replaces: 3400060)			Immediately	$ 7.22
6	2003985		Hinge Assembly, Bottom		Appelez-nous	-
7	2005397		Filler, Foam		Appelez-nous	-
8	2006140		Spacer, Door Edge Side		Appelez-nous	-
9	2005174		Door Gasket, Magnetic		Appelez-nous	-
10	488531		Screw, 1/4 - 20 X .500		Appelez-nous	-
11	2005290		Handle, Door				$ 130.36
12	2005982		Gasket (2)		Appelez-nous	-
13	2003982		Spacer-hinge, Bottom		Appelez-nous	-
14	2207417		Spacer, Door Edge Bottom		Appelez-nous	-
15	WP488729		Screw   (Replaces: 487052)			Immediately	$ 7.01
17	2207440		Spacer, Door Edge Top		Appelez-nous	-
18	2005482		Tube, Door Shelf		Appelez-nous	-
19	2005417		Shelf, Door (2)		Appelez-nous	-
20	WP681249		Screw, 8-18 X .750   (Replaces: 489276)			Immediately	$ 7.07
21	2005542		End Cap, Left		Appelez-nous	-
22	2005541		End Cap, Right		Appelez-nous	-
23	2006152		Tube, Door Shelf (gallon)		Appelez-nous	-
26	2005419		Door, Utility Bin (2)		Appelez-nous	-
27	2006154		Door Shelf, Gallon		Appelez-nous	-
28	2165792		Tray, Butter		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
