Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 2005312 Top Grille Assembly Appelez-nous -
2 2005549 Cover, Unit Appelez-nous -
3 WP681414 Screw   (Replaces: 488908) In-Stock Immediately $ 7.07

4 2002484 Grille, Bracket Appelez-nous -
5 WP8204624 Screw   (Replaces: 2001415) Special Order $ 14.99

6 2005292 Nameplate Special Order $ 52.20

7 2005534 Guard, Compressor Wiring Appelez-nous -
8 2006445 Baffle-air, Condenser Appelez-nous -
9 WP2004333 Nut   (Replaces: 2004333) Special Order $ 9.63

10 2005485 Bracket, Trim Panel Appelez-nous -
11 2006197 Louver, Vent Appelez-nous -
12 2005483 Louver, Bracket Appelez-nous -
13 WPW10141625 Screw   (Replaces: 488649) Special Order $ 19.04

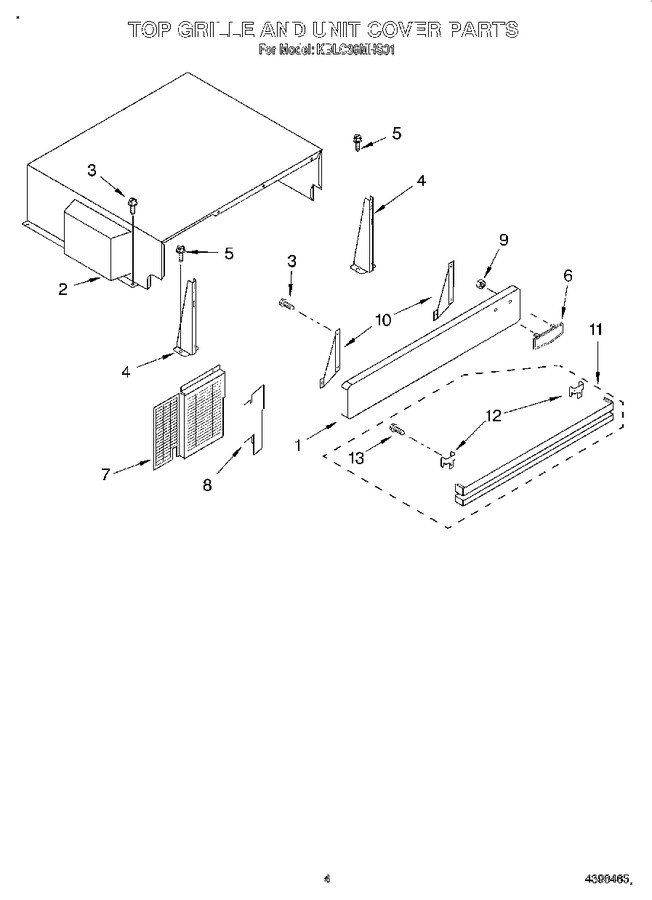

    View Diagram in Separate Window     Print Icon   Print Part List
