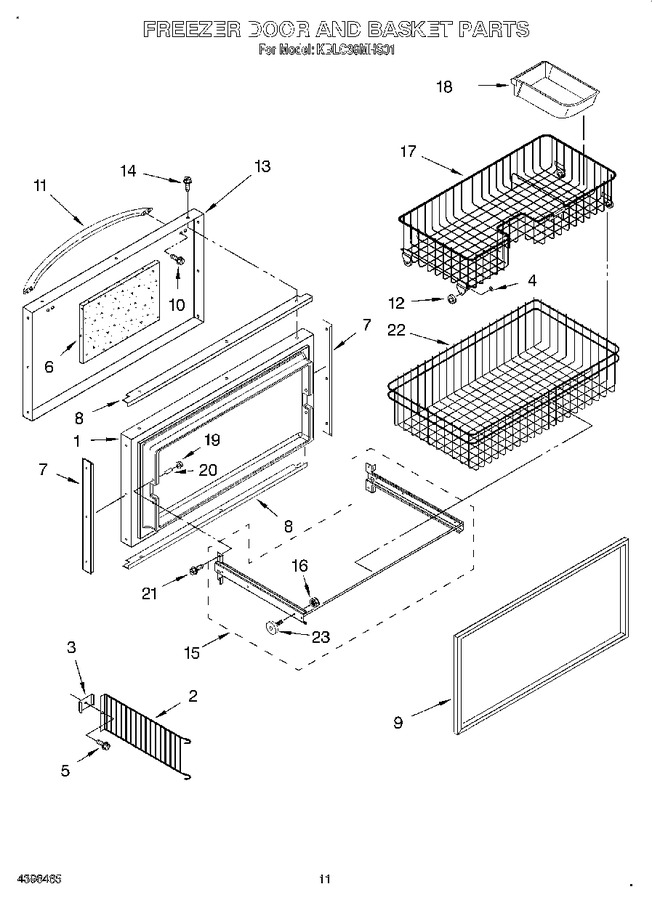

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2207525		Freezer Door Panel (f.i.p.)		Appelez-nous	-
2	2204525		Divider, Basket		Appelez-nous	-
3	2207429		Clamp, Divider		Appelez-nous	-
4	2207415		Nut, Crimp				$ 12.03
5	WPW10141625		Screw   (Replaces: 488649)				$ 19.04
6	2005400		Foam, Filler		Appelez-nous	-
7	2006139		Spacer, Door Edge Side		Appelez-nous	-
8	2006138		Spacer, Door Edge Top & Bottom		Appelez-nous	-
9	2005187		Door Gasket, Magnetic		Appelez-nous	-
10	488531		Screw		Appelez-nous	-
11	2005290		Handle, Door				$ 130.36
12	W11214482		Roller   (Replaces: 2204542)				$ 86.60
13	2005396		Skin, Door		Appelez-nous	-
14	WP488729		Screw   (Replaces: 487052)			Immediately	$ 7.01
15	2207533		Bracket, Assembly Freezer Basket		Appelez-nous	-
16	2207415		Nut				$ 12.03
17	2005376		Basket, Upper		Appelez-nous	-
18	2174124		Pan, Ice Cube		Appelez-nous	-
19	WP2207454		Nut, Crimp   (Replaces: 2207454)				$ 9.58
20	2207471		Bushing		Appelez-nous	-
21	3400507		Screw		Appelez-nous	-
22	2006244		Basket, Freezer Lower		Appelez-nous	-
23	2207463		Roller		Appelez-nous	-
