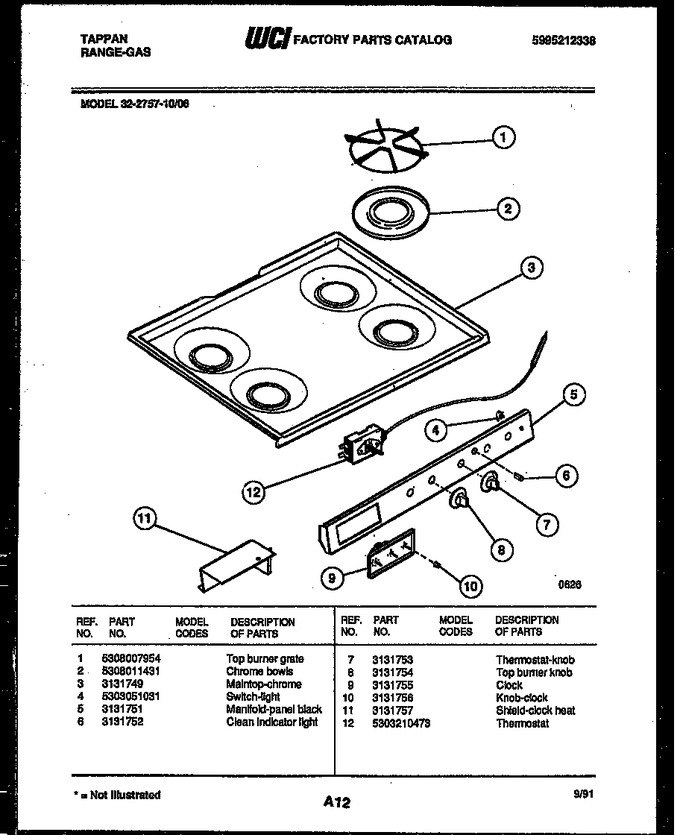

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5308007954 | Top Burner Grate |
|
- | |||||
| 2 | 5308011431 | Chrome Bowls |
|
- | |||||
| 3 | 3131749 | Maintop-chrome |
|
- | |||||
| 4 | 5303051031 | Switch-light |
|
- | |||||
| 5 | 3131751 | Manifold-panel Black |
|
- | |||||
| 6 | 3131752 | Clean Indicator Light |
|
- | |||||
| 7 | 3131753 | Thermostat-knob |
|
- | |||||
| 8 | 3131754 | Top Burner Knob |
|
- | |||||
| 9 | 3131755 | Clock |
|
- | |||||
| 10 | 3131756 | Knob - Clock |
|
- | |||||
| 11 | 3131757 | Shield-clock Heat |
|
- | |||||
| 12 | 5303210473 | Thermostat |
|
- |
