Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 5308007974 Pressure Regul Special Order $ 309.02

2 5300009126 Clip Appelez-nous -
3 3131855 Manifold Pipe Appelez-nous -
4 3131803 Baffle-broiler Appelez-nous -
5 3200709 Top Burner Valve Appelez-nous -
6 5303210388 Bake Burner Appelez-nous -
7 08068028 Tube - Oven Feed Appelez-nous -
8 3131864 Loxit Nuts Appelez-nous -
9 5303017415 Oven Safety Valve Appelez-nous -
10 3131866 Broil Burner Feed Tube Appelez-nous -
11 3051038 Keep Nuts Appelez-nous -
12 5308011508 Burner Baffle Appelez-nous -
13 5308011470 Broil Burner Mixer Pin Appelez-nous -
14 3131072 Compression Nut & Sleeve Appelez-nous -
15 3131871 Igniter Shield Special Order $ 7.93

16 5303016211 Broiler Igniter Appelez-nous -
17 5303210389 Broil Burner Appelez-nous -
18 12400035 Bake Igniter   (Replaces: 5308009420) In-Stock Immediately $ 60.44

19 5303210471 Top Burner Support Appelez-nous -
20 3203968 Top Burner Igniter-24`` Appelez-nous -
21 3017146 Top Burner Left Rear Appelez-nous -
22 3017144 Top Burner Left Front Appelez-nous -
23 3017145 Top Burner Right Rear Appelez-nous -
24 5303131080 Top Burner Right Front Special Order $ 76.13

25 5303131099 Shutoff Valve Appelez-nous -
20A 3203971 Top Burner Igniter-48`` Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

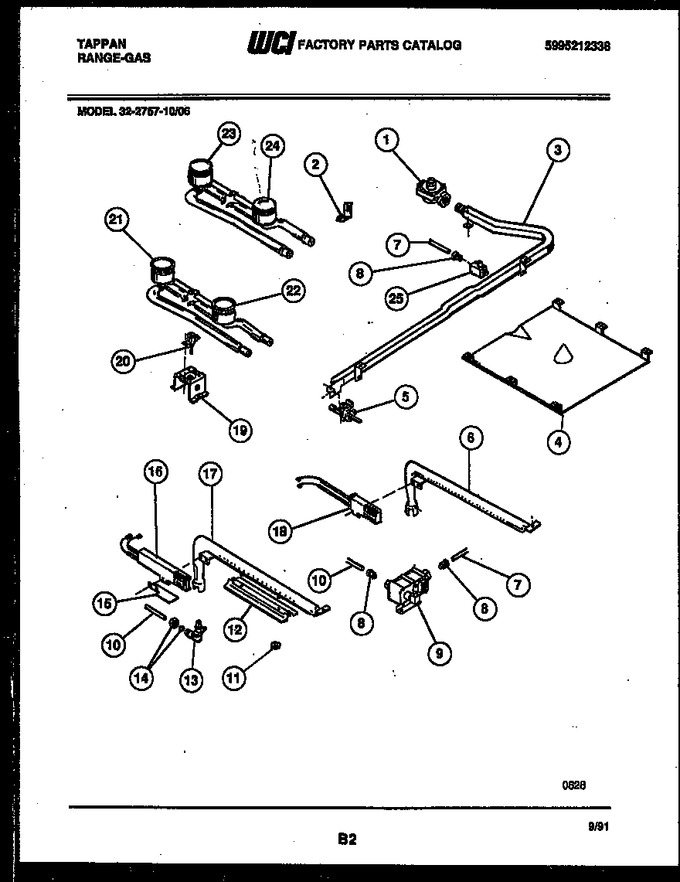

Diagram for 32-2757-00-06
