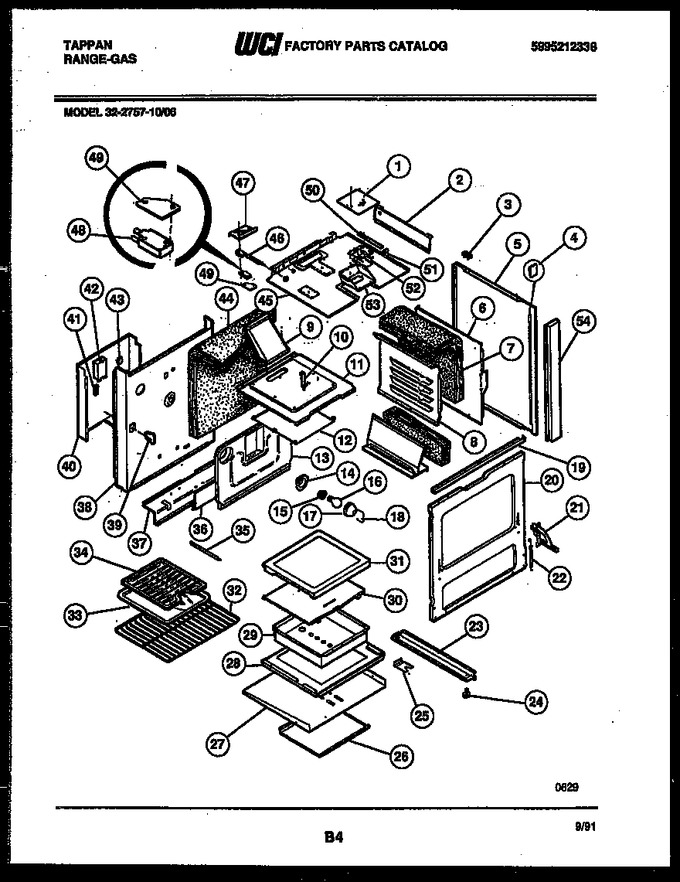

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Cooktop Parts
03 - Door Parts
04 - Backguard
05 - Drawer Parts
06 - Burner, Manifold And Gas Control
07 - Body Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3016970 | Door Lock Cover |
|
- | |||||
| 2 | 5303131053 | Heat Shield Right |
|
- | |||||
| 3 | 3205587 | Grommet-maintop |
|
- | |||||
| 4 | 3131791 | Bodyside Corner Clip |
|
$ 19.01 | |||||
| 5 | 3131792 | Bodyside Panel-black |
|
- | |||||
| 6 | 3131794 | Bodyside Heat Shield |
|
- | |||||
| 7 | 3131795 | Insulation Oven Wrapper |
|
- | |||||
| 8 | 3016533 | Oven Liner Side Rt |
|
- | |||||
| 9 | 3016877 | Flue Box |
|
- | |||||
| 10 | 3131800 | Burner Box Bttm Brkt |
|
- | |||||
| 11 | 3131802 | Oven Top Lining |
|
- | |||||
| 12 | 3131803 | Baffle Broiler Burner |
|
- | |||||
| 13 | 3200915 | Oven Back Liner |
|
- | |||||
| 14 | 3051511 | Cup, Oven Light |
|
$ 60.22 | |||||
| 15 | 5303009410 | Receptacle-oven Light |
|
- | |||||
| 16 | 40A15 | Bulb, Oven Light (Replaces: 5303013071) |
|
Immediately | $ 1.98 | ||||
| 17 | 5304524341 | Glass - Oven Light Lens (Replaces: 08011086) |
|
Immediately | $ 14.18 | ||||
| 18 | 5303205904 | Retainer-oven Light |
|
$ 7.67 | |||||
| 19 | 3131811 | Control Pnl Support |
|
- | |||||
| 20 | 3205905 | Front Frame |
|
- | |||||
| 21 | 3205895 | Hinge - Oven Door (rt) |
|
- | |||||
| 22 | 5303017488 | Spring Oven Door |
|
- | |||||
| 23 | 5303210255 | Base Rail-rt |
|
- | |||||
| 24 | 318175510 | Level-bolt (4) (Replaces: 5303210257) |
|
Immediately | $ 24.26 | ||||
| 25 | 3934059 | Brkt Anti-tip |
|
- | |||||
| 26 | 08068050 | Storage Drwr Shield |
|
- | |||||
| 27 | 3131820 | Bottom Insulation Retainer |
|
- | |||||
| 28 | 12055 | Liner Oven Bttm |
|
- | |||||
| 29 | 5308068046 | Pan Burner Oven |
|
- | |||||
| 30 | 3131823 | Baffle Bttm Oven |
|
- | |||||
| 31 | 3016975 | Plate Oven Bttm |
|
- | |||||
| 32 | 5303015714 | Oven Rack |
|
- | |||||
| 33 | 5303016973 | Broiler-pan |
|
- | |||||
| 34 | 5303017712 | Broiler Grid |
|
- | |||||
| 35 | 3201170 | Shield Cap Bulb |
|
- | |||||
| 36 | 08068039 | Cover Valve |
|
- | |||||
| 37 | 3131831 | Support Control Valve |
|
- | |||||
| 38 | 3131833 | Back-main |
|
- | |||||
| 39 | 3051096 | Support,oven Rear |
|
- | |||||
| 40 | 08068038 | Cover Back Wire |
|
- | |||||
| 41 | 5308008071 | Terminal Block |
|
- | |||||
| 42 | 5303209931 | Module Spark |
|
- | |||||
| 43 | 5303131839 | Thermostat Bake-broil |
|
- | |||||
| 44 | 3131840 | Insulation Top-back Bttm |
|
- | |||||
| 45 | 3016971 | Burner Box Bttm |
|
- | |||||
| 46 | 08068030 | Actuator, Lock Switch |
|
- | |||||
| 47 | 5303131843 | Bracket Lock Switch |
|
- | |||||
| 48 | 5303131846 | Switch (2) |
|
- | |||||
| 49 | 3017411 | Insulator (2) |
|
- | |||||
| 50 | 5308068040 | Handle Door Lock |
|
- | |||||
| 51 | 3131851 | Knob Door Lock |
|
- | |||||
| 52 | 5308068025 | Lock Oven Door |
|
- | |||||
| 53 | 3131853 | Support Door Lock |
|
- | |||||
| 54 | 5308014088 | Trim-bodyside (2) |
|
- | |||||
| *60020 | 5308007985 | Terminal Block |
|
- | |||||
| *60020 | 191S018F254 | Diagram-wiring (not For Purchase) |
|
- | |||||
| 21A | 3205894 | Hinge - Oven Door (lt) |
|
$ 55.91 | |||||
| 23A | 5303210256 | Base Rail-lt |
|
- | |||||
| 2A | 5303131054 | Heat Shield Left |
|
- | |||||
| 8A | 3016534 | Oven Liner Side Lt |
|
- |
