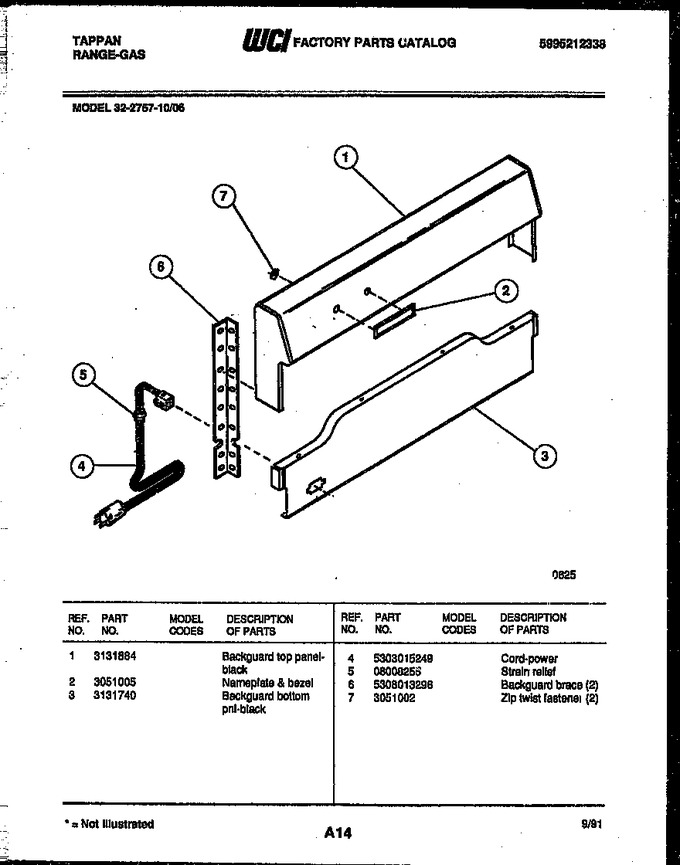

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3131884 | Backguard Top Panel-black |
|
- | |||||
| 2 | 3051005 | Nameplate Bezel |
|
- | |||||
| 3 | 3131740 | Backguard Bottom Pnl-black |
|
- | |||||
| 4 | 5303015249 | Cord - Power |
|
- | |||||
| 5 | 08008255 | Strain - Relief |
|
- | |||||
| 6 | 5308013296 | Backguard Brace (2) |
|
- | |||||
| 7 | 3051002 | Zip Twist Fastener (2) |
|
- |
