Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 5308068071 Oven Door Seal Appelez-nous -
2 3016972 Oven Door Liner Blue Appelez-nous -
3 5303131801 Screw, 10 X 3/8 Appelez-nous -
4 3131761 Insulation Oven Door Pouch Appelez-nous -
5 3131762 Insulation, Oven Door Appelez-nous -
6 3131763 Insulation Shield Appelez-nous -
7 3131764 Heat Shield Appelez-nous -
8 3131765 Oven Dr Outer Glass Appelez-nous -
9 5303131766 Screw, 6-32 X 3/8`` Special Order $ 10.87

10 5303131767 Screw 8-18 X 1/2 Appelez-nous -
11 5303208639 Oven Door Handle Appelez-nous -
12 3131769 Oven Door Frame Appelez-nous -
13 08068068 Spring Clip Appelez-nous -
14 3017414 Rubber Bumper (6) Appelez-nous -
15 5308013865 Oven Dr Inner Glass Appelez-nous -
16 3204652 Retainer Glass Appelez-nous -
17 5303271567 Glass Pack Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

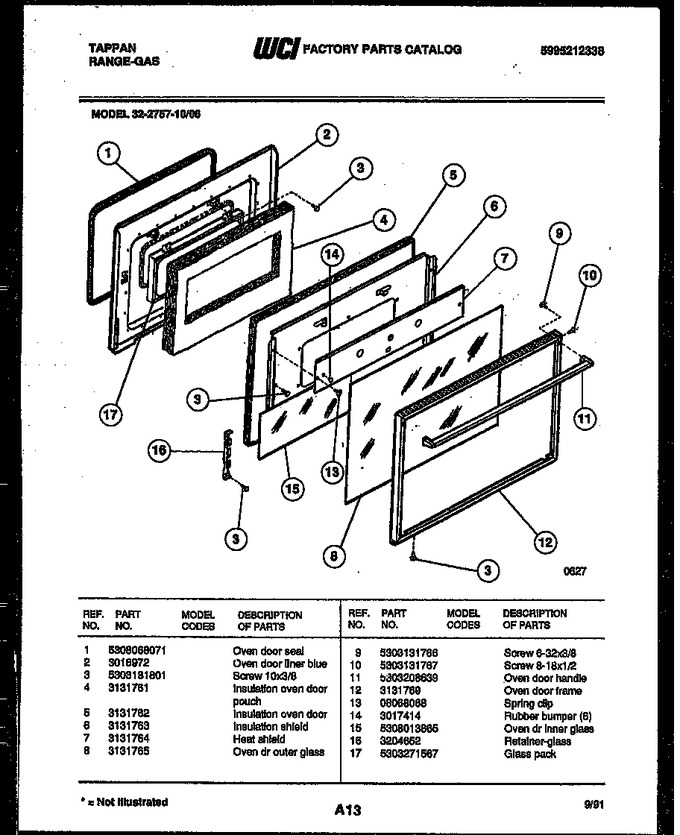

Diagram for 32-2757-00-06
