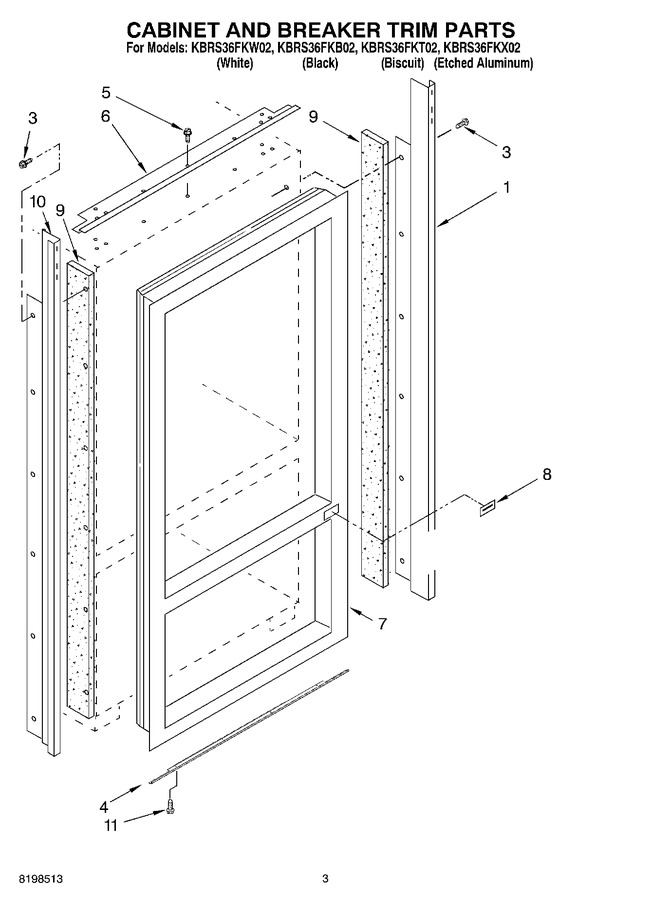

02 - Cabinet And Breaker Trim Parts


03 - Top Grille And Unit Cover Parts


04 - Liner Parts


05 - Refrigerator Shelf Parts


06 - Freezer Door And Basket Parts


07 - Refrigerator Door Parts


08 - Upper Unit Parts


09 - Lower Unit And Tube Parts


10 - Icemaker Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2215919B		Cabinet, Trim (right Side) (black)		Appelez-nous	-
1	2215919T		Cabinet, Trim (right Side) (biscuit)		Appelez-nous	-
1	2215919W		Cabinet, Trim (right Side) (white)		Appelez-nous	-
1	8201535		Cabinet, Trim Right Side (etched Aluminum)		Appelez-nous	-
3	WP1163283		Screw   (Replaces: 1163283)				$ 6.47
4	2254724		Cabinet, Trim (bottom)		Appelez-nous	-
5	W11624204		Screw   (Replaces: 486194)				$ 12.62
6	2003645		Cabinet, Trim Top		Appelez-nous	-
8	2005782		Cover, Hinge				$ 12.04
9	2005925		Seal, Side Trim				$ 83.72
10	2215936T		Cabinet Trim (left Side) (biscuit)		Appelez-nous	-
10	2215936		Cabinet Trim (left Side) (etched Aluminum)		Appelez-nous	-
10	2215936W		Cabinet Trim (left Side) (white)		Appelez-nous	-
10	2215936B		Cabinet Trim (left Side) (black)		Appelez-nous	-
11	WP489464		Screw 8-18 X 1/2   (Replaces: 489464)			Immediately	$ 7.05
