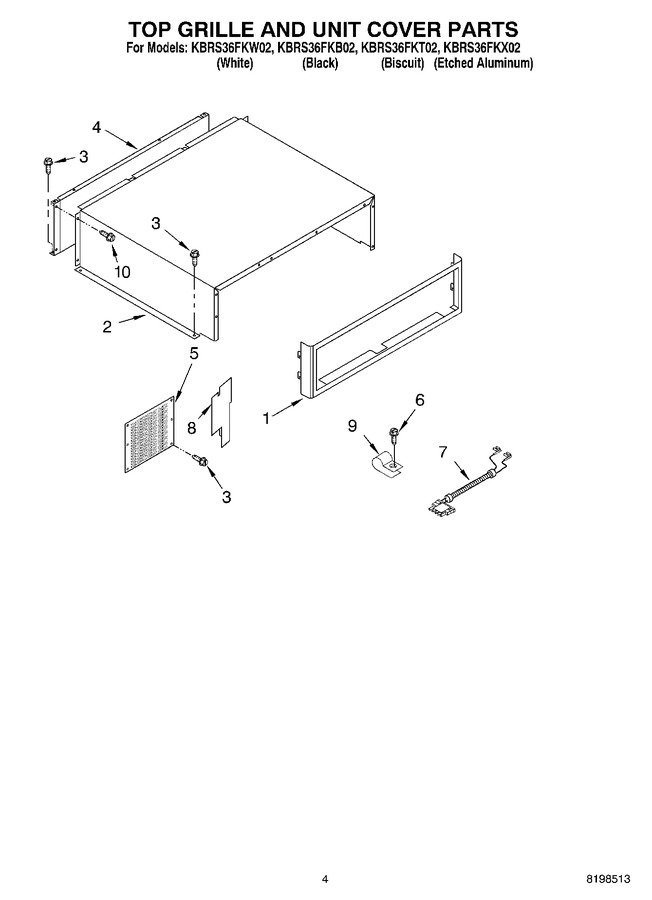

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2215974W | Top Grille Assembly (white) |
|
- | |||||
| 1 | 2215974B | Top Grille Assembly (black) |
|
- | |||||
| 1 | 2215974T | Top Grille Assembly (biscuit) |
|
- | |||||
| 1 | 8201578 | Top Grille Assembly (etched Aluminum) |
|
- | |||||
| 2 | 2209490 | Cover, Unit |
|
- | |||||
| 3 | WP489069 | Screw, 8-18 X 3/8 (Replaces: 1157158) |
|
Immediately | $ 7.07 | ||||
| 4 | 2256466 | Back Panel (Replaces: 2215830) |
|
$ 280.48 | |||||
| 5 | 2209492 | Guard, Wiring |
|
- | |||||
| 6 | WP965173 | Screw (Replaces: 487415) |
|
Immediately | $ 9.65 | ||||
| 7 | 2187423 | Wire Assembly |
|
- | |||||
| 8 | 2215678 | Baffle-air, Condenser |
|
- | |||||
| 9 | 489348 | Clamp |
|
- | |||||
| 10 | WP681414 | Screw, 10-12 X 1/2 (Replaces: 488908) |
|
Immediately | $ 7.07 |
