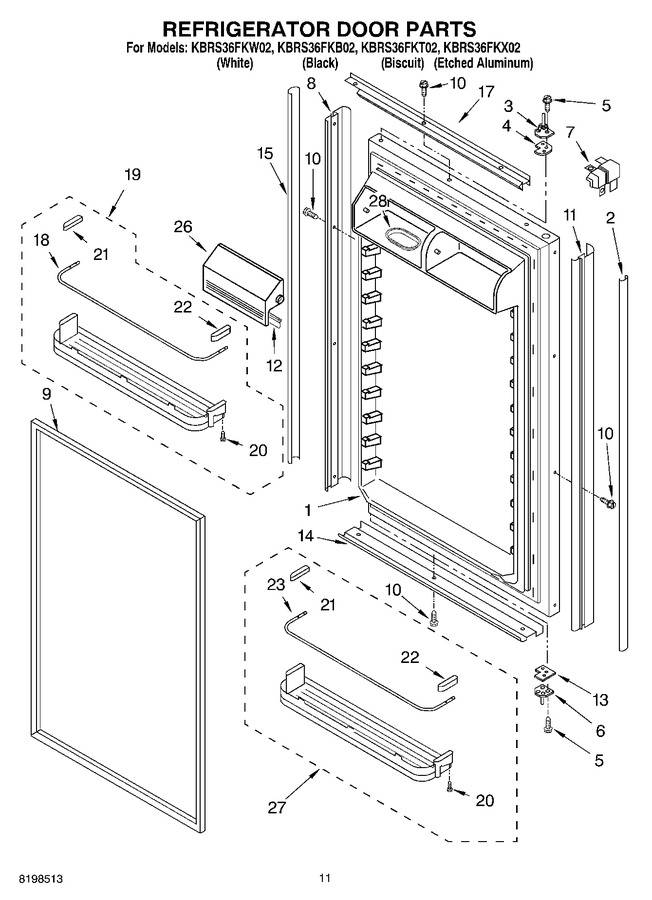

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2259186 | Refrigerator Door (includes Item 9) |
|
- | |||||
| 2 | 2006337 | Cover-trim, Handle (etched Aluminum) |
|
- | |||||
| 2 | 2006338 | Cover-trim, Handle (white) |
|
- | |||||
| 2 | 2006340 | Cover-trim, Handle (biscuit) |
|
- | |||||
| 2 | 2006341 | Cover-trim, Handle (black) |
|
- | |||||
| 3 | 2266912 | Hinge Assembly, Top |
|
$ 44.22 | |||||
| 4 | 2256381 | Spacer-hinge, Top |
|
$ 24.49 | |||||
| 5 | W11474472 | Screw, 10-32 X 3/4 (Replaces: 489282) |
|
Immediately | $ 7.22 | ||||
| 6 | 2257605 | Hinge Assembly, Bottom |
|
- | |||||
| 7 | 2207457 | Corner Trim (chrome) |
|
$ 48.96 | |||||
| 7 | 2006273 | Corner Trim (black) |
|
- | |||||
| 7 | 2006272 | Corner Trim (biscuit) |
|
- | |||||
| 7 | 2006270 | Corner Trim (white) |
|
$ 170.06 | |||||
| 8 | 2005176 | Trim-door, Side (etched Aluminum) |
|
- | |||||
| 8 | 2006275 | Trim-door, Side (black) |
|
- | |||||
| 8 | 2006274 | Trim-door, Side (biscuit) |
|
- | |||||
| 8 | 2005389 | Trim-door, Side (white) |
|
- | |||||
| 9 | 2188532 | Door Gasket, Magnetic |
|
- | |||||
| 10 | 8281253 | Screw 8-15 X 1/2 (biscuit) |
|
- | |||||
| 10 | WP8281250 | Screw 8-15 X 1/2 (stainless Steel) (Replaces: 8281250) |
|
$ 9.79 | |||||
| 10 | W10825422 | Screw 8-15 X 1/2 (white) (Replaces: 8281251) |
|
$ 9.74 | |||||
| 10 | W10851443 | Screw 8-15 X 1/2 (black) (Replaces: 8281252) |
|
Immediately | $ 6.92 | ||||
| 11 | 2006295 | Handle, Door (biscuit) |
|
- | |||||
| 11 | 2006296 | Handle, Door (black) |
|
- | |||||
| 11 | 2005178 | Handle, Door (etched Aluminum) |
|
- | |||||
| 11 | 2005391 | Handle, Door (white) |
|
- | |||||
| 12 | 2005982 | Gasket (2) |
|
- | |||||
| 13 | 2257647 | Spacer-hinge, Bottom |
|
- | |||||
| 14 | 2006283 | Trim-door, Bottom (biscuit) |
|
- | |||||
| 14 | 2005177 | Trim-door, Bottom (etched Aluminum) |
|
$ 151.83 | |||||
| 14 | 2005390 | Trim-door, Bottom (white) |
|
- | |||||
| 14 | 2006284 | Trim-door, Bottom (black) |
|
- | |||||
| 15 | 2006336 | Cover-trim, Side (black) |
|
- | |||||
| 15 | 2006332 | Cover-trim, Side (etched Aluminum) |
|
- | |||||
| 15 | 2006333 | Cover-trim, Side (white) |
|
- | |||||
| 15 | 2006335 | Cover-trim, Side (biscuit) |
|
- | |||||
| 17 | 2006287 | Trim-door, Top (biscuit) |
|
- | |||||
| 17 | 2005388 | Trim-door, Top (white) |
|
- | |||||
| 17 | 2005175 | Trim-door, Top (etched Aluminum) |
|
- | |||||
| 17 | 2006288 | Trim-door, Top (black) |
|
- | |||||
| 18 | 2005482 | Tube, Door Shelf |
|
- | |||||
| 19 | 2005417 | Shelf, Door (2) |
|
- | |||||
| 20 | WP681249 | Screw, 8-18 X .750 (Replaces: 489276) |
|
Immediately | $ 7.07 | ||||
| 21 | 2005542 | End Cap, Left |
|
- | |||||
| 22 | 2005541 | End Cap, Right |
|
- | |||||
| 23 | 2006152 | Tube, Door Shelf (gallon) |
|
- | |||||
| 26 | 2005983 | Door, Utility Bin (2) (includes Item 12) |
|
- | |||||
| 27 | 2006154 | Door Shelf, Gallon |
|
- | |||||
| 28 | 2165792 | Butter Tray |
|
- |
