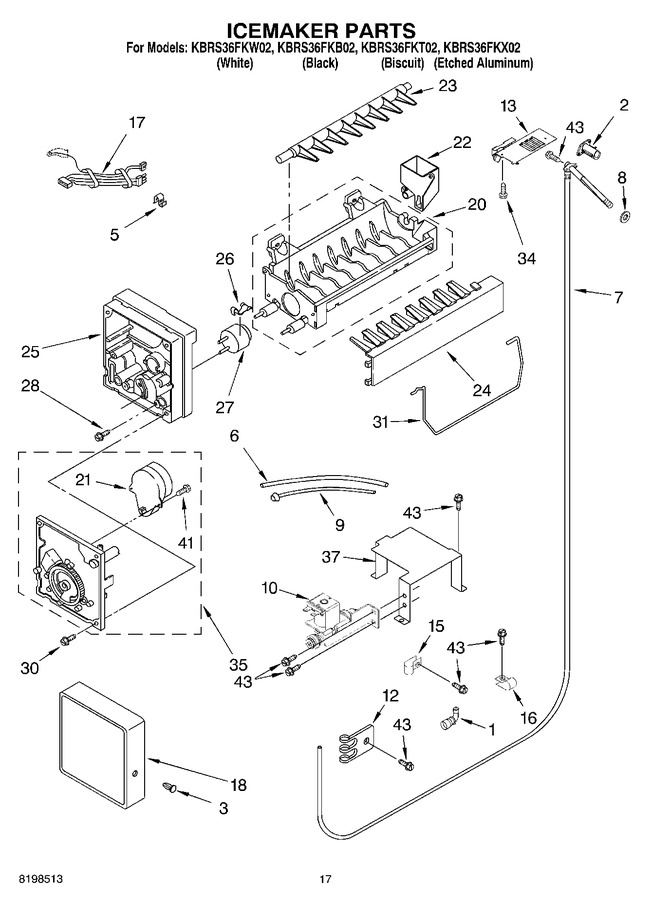

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2204597 | Tube, Valve |
|
- | |||||
| 2 | WP2221240 | Heater, Fill Tube (Replaces: 2221240) |
|
$ 177.07 | |||||
| 3 | 489115 | Fastener-snap In |
|
$ 5.51 | |||||
| 5 | WP628379 | Clip, Fuse (Replaces: 628379) |
|
$ 9.51 | |||||
| 6 | 2214613 | Tube, Filter Inlet |
|
- | |||||
| 7 | 2221140 | Water Inlet Tube Assembly |
|
- | |||||
| 8 | WP1106508 | Seal Gasket (Replaces: 1106508) |
|
Immediately | $ 8.94 | ||||
| 9 | 2254800 | Tube, Filter Outlet |
|
- | |||||
| 10 | WP2313917 | Valve, Solenoid (Replaces: 2254709) |
|
Immediately | $ 213.67 | ||||
| 12 | WP488366 | Clamp, Water Tube (Replaces: 2208136) |
|
$ 10.06 | |||||
| 13 | WP2221231 | Heat Shield (Replaces: 2221231) |
|
$ 76.57 | |||||
| 15 | 489348 | Clamp, Nylon Valve |
|
- | |||||
| 16 | 488946 | Clamp, Tube |
|
$ 18.41 | |||||
| 17 | 2254792 | Wire Harness, Icemaker |
|
$ 54.13 | |||||
| 18 | 2257538 | Cover |
|
- | |||||
| 20 | WPW10190929 | Mold & Heater (also Order 542638 Silicone Grease) (Replaces: 628228) |
|
$ 209.84 | |||||
| 21 | W10190935 | Motor (Replaces: 628398) |
|
Immediately | $ 99.06 | ||||
| 22 | WP628356 | Cup-water Fill (Replaces: 628356) |
|
$ 46.07 | |||||
| 23 | WP627843 | Ejector (Replaces: 627843) |
|
$ 75.24 | |||||
| 24 | WP2182124 | Ice Striper (Replaces: 2182124) |
|
$ 77.45 | |||||
| 25 | WP2195914 | Support (Replaces: 2195914) |
|
$ 94.11 | |||||
| 26 | WP2315522 | Retainer, Thermostat (2) (Replaces: 627796) |
|
$ 9.95 | |||||
| 27 | W10190935 | Thermostat (also Order 542639 Cement Alumilastic) (Replaces: 627811) |
|
Immediately | $ 99.06 | ||||
| 28 | 8533917 | Screw |
|
$ 12.03 | |||||
| 30 | WP681249 | Screw (Replaces: 489276) |
|
Immediately | $ 7.07 | ||||
| 31 | 2221172 | Shut Off Arm |
|
- | |||||
| 34 | WP489069 | Screw (Replaces: 1157158) |
|
Immediately | $ 7.07 | ||||
| 35 | 8201515 | Module Assembly (includes Items 21 & 41) (Replaces: 626653) |
|
Immediately | $ 127.48 | ||||
| 37 | 2221282 | Water Valve Mounting Bracket |
|
- | |||||
| 41 | 489136 | Screw, (2) |
|
$ 9.26 | |||||
| 43 | W11624204 | Screw (Replaces: 486194) |
|
$ 12.62 | |||||
| 100 | 2220954 | Front Panel Kit (biscuit) |
|
- | |||||
| 100 | 2220953 | Front Panel Kit (black) |
|
- | |||||
| 100 | 2220955 | Front Panel Kit Black Acrylic Static Cleaner Part No. 978849 |
|
- | |||||
| 100 | 2220952 | Front Panel Kit (white) |
|
- | |||||
| 100 | 4317943 | Complete Icemaker Assembly |
|
Immediately | $ 170.06 |
