SELECT A DIAGRAM

01 - Cabinet Parts


02 - Cabinet And Breaker Trim Parts


03 - Top Grille And Unit Cover Parts


04 - Liner Parts


05 - Refrigerator Shelf Parts


06 - Freezer Door And Basket Parts


07 - Refrigerator Door Parts


08 - Upper Unit Parts

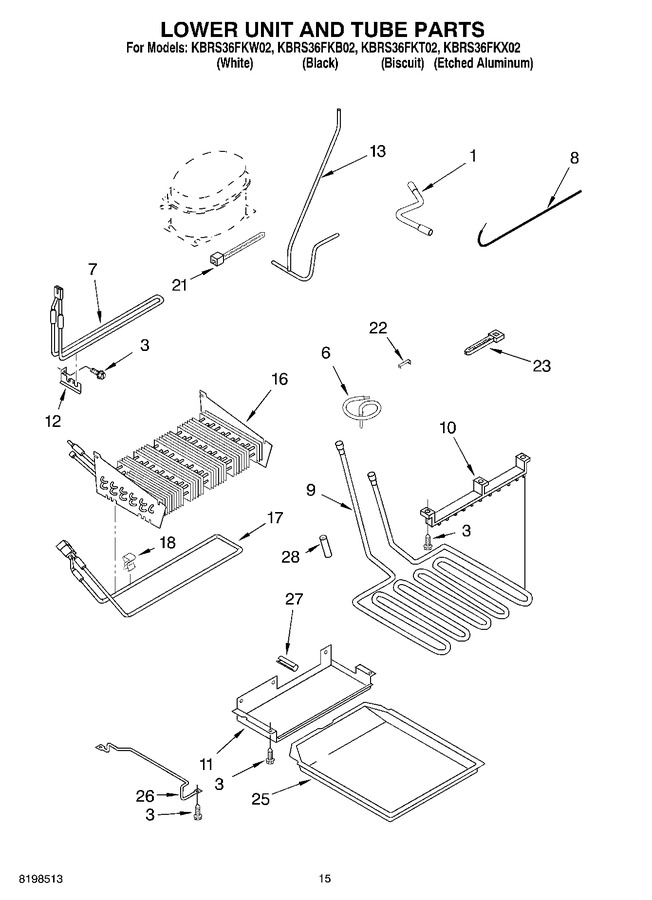

09 - Lower Unit And Tube Parts


10 - Icemaker Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2256476		Tube, Transition		Appelez-nous	-
3	W11624204		Screw   (Replaces: 486194)				$ 12.62
6	2209035		Suction Tube		Appelez-nous	-
7	2207486		Heater, Defrost (rear)				$ 69.32
8	2209454		Tube, Connect (drier)		Appelez-nous	-
9	2209451		Heater, Drain Pan				$ 169.26
10	2209450		Hanger, Heater		Appelez-nous	-
11	2005908		Shield, Drain Pan		Appelez-nous	-
12	2204543		Support, Heater		Appelez-nous	-
13	2209036		Tube, Discharge		Appelez-nous	-
16	2209465		Evaporator		Appelez-nous	-
17	2207485		Heater, Defrost (front)				$ 72.92
18	2204510		Clamp, Heater (2)		Appelez-nous	-
21	WPW10339879		Wire Tie   (Replaces: 857547)				$ 7.11
22	W10169509		Clip, Heat Exchanger   (Replaces: 2215691)		Appelez-nous	-
23	WPW10339879		Wire Tie   (Replaces: 857547)				$ 7.11
25	WP2001264		Drain Pan   (Replaces: 2001264)				$ 237.58
26	1113206		Bracket, Drain Pan (left)		Appelez-nous	-
26	1113207		Bracket, Drain Pan (right)		Appelez-nous	-
27	WP2158826		Dampener   (Replaces: 513942)				$ 1.56
28	2215648		Damper, Heater				$ 11.32
