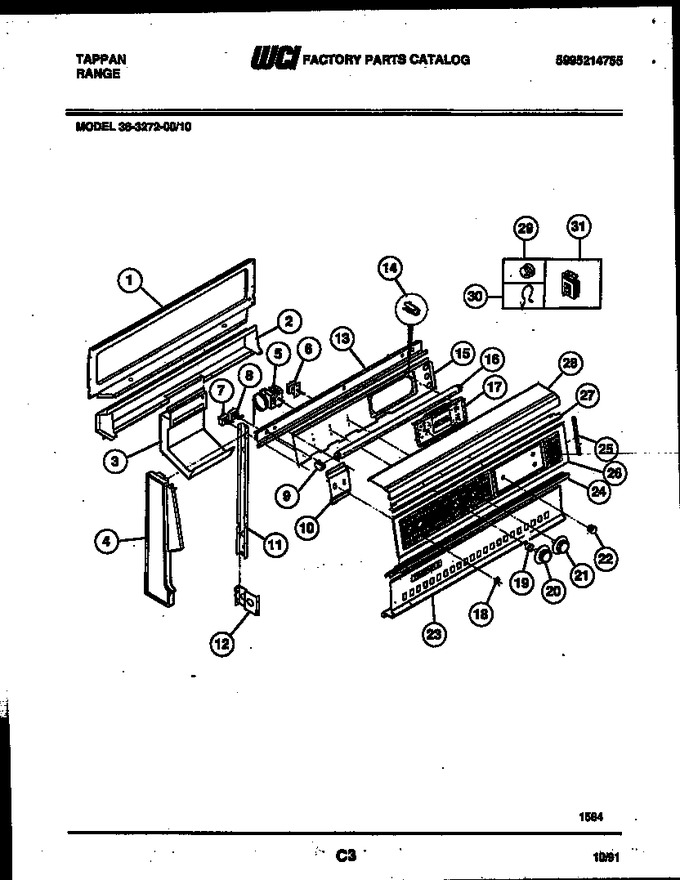

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	657T006F02-18		Shield, Wall Rear		Appelez-nous	-
2	655T389W03-18		Shield, Heat		Appelez-nous	-
3	252T040W01-18		Flue, Back		Appelez-nous	-
4	123T103P01		Cap, End (lh)		Appelez-nous	-
5	5303283015		Thermostat Oven		Appelez-nous	-
6	697T032P09		Switch, Selector		Appelez-nous	-
7	695T167P01		Switch, Panel Light Switch		Appelez-nous	-
8	695T165P01		Switch, Oven Light		Appelez-nous	-
9	3204169		Recept Fluor Light-lh		Appelez-nous	-
10	554T359F04		Plate-instr Mtg		Appelez-nous	-
11	136T319F01		Channel-backguard Mtg		Appelez-nous	-
12	072T637F01		Bracket, Backguard Mounting		Appelez-nous	-
13	008T474F02		Angle Support		Appelez-nous	-
14	08011713		Fstnr-clock Tubular		Appelez-nous	-
15	554T359F02		Plate-instr Mtg		Appelez-nous	-
16	3131275		Lamp Fluor				$ 49.40
17	5303207810		Clock-digital		Appelez-nous	-
18	045T064P02		Bezel, Light Switch (2)		Appelez-nous	-
19	5308010401		Bushing-c/p Glass		Appelez-nous	-
20	358T169S08		Knob, Control		Appelez-nous	-
21	358T142P107		Knob, Selector		Appelez-nous	-
22	08010404		Knob-clock (3)		Appelez-nous	-
23	740T484P02		Trim, Panel Lower		Appelez-nous	-
24	233T088P02		Extrusion, Trim		Appelez-nous	-
25	740T097F13		Trim-end Control Pnl Glass (2)		Appelez-nous	-
26	277T207P01		Glass, Backguard		Appelez-nous	-
27	612T105F04		Retainer, Glass		Appelez-nous	-
28	740T481P02		Trim, Top Canopy		Appelez-nous	-
29	287T003P09		Grommet, Wire		Appelez-nous	-
30	142T033P01		Clamp, Purse Lock		Appelez-nous	-
31	5308010397		Ballast		Appelez-nous	-
4A	123T103P02		Cap, End (rh)		Appelez-nous	-
9A	597T037P20		Recept Fluor Light-rh		Appelez-nous	-
