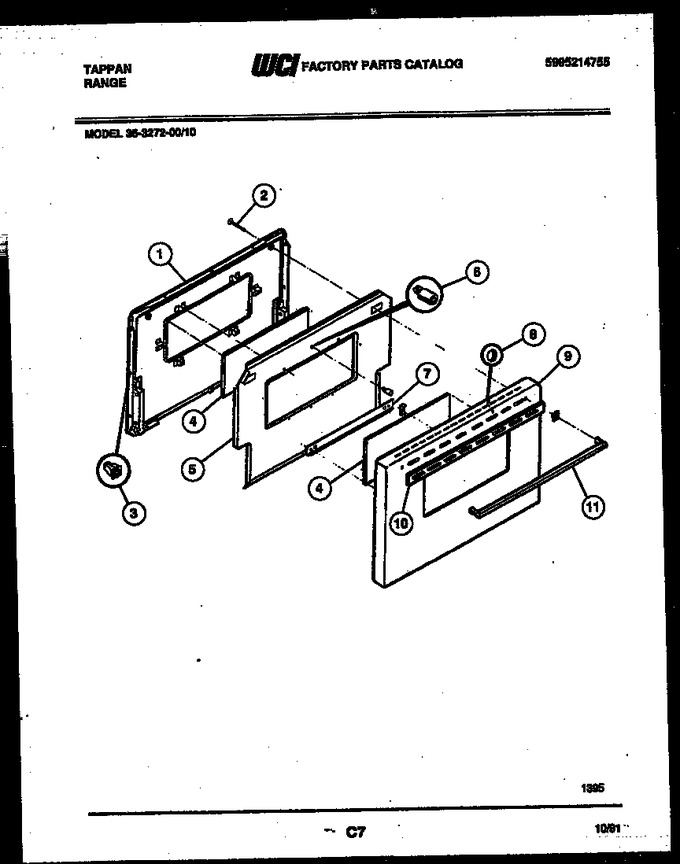

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 381T086W06-86 | Liner, Oven Door |
|
- | |||||
| 2 | 5303207638 | Screw-handle Mtg |
|
- | |||||
| 3 | 5303131254 | Fstnr Push-nut |
|
- | |||||
| 4 | 5303207138 | Glass-oven Door-front And Back |
|
- | |||||
| 5 | 3131543 | Shield, Wool |
|
- | |||||
| 6 | 241T017P180 | Fstnr - Nylon Spacer |
|
- | |||||
| 7 | 3131540 | Angle, Glass Retainer |
|
- | |||||
| 8 | 3131386 | Fstnr - Oven Door Trim |
|
- | |||||
| 9 | 533T051W09-66 | Pnl-oven Door-wheat |
|
- | |||||
| 10 | 740T410P01 | Trim, Oven Door Top (black) |
|
- | |||||
| 11 | 3012727 | Handle, Oven Door |
|
- | |||||
| *60991 | 328T049P29 | Insulation |
|
- | |||||
| *60992 | 789T053P42 | Washer, Door Handle (2) |
|
- |
