View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Backguard
03 - Control Panel
04 - Cooktop Parts
05 - Door Parts
06 - Panel Compartment
07 - Broiler Drawer Parts
08 - Burner, Manifold And Gas Control
09 - Body Parts
SELECT A DIAGRAM
New Model Search:

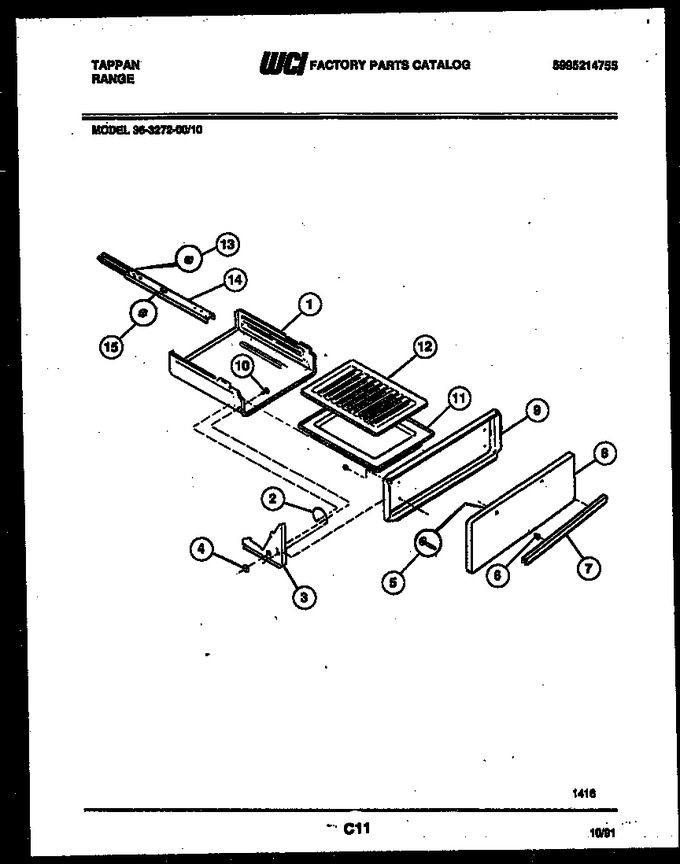

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3018608 | Drawer-broiler |
|
- | |||||
| 2 | 3018618 | Spring, Broiler Lh C Type |
|
- | |||||
| 3 | 072T659F03-08 | Bracket, Hinge Broiler (lh) |
|
- | |||||
| 4 | 3131386 | Fstnr - Push Nut |
|
- | |||||
| 5 | 636T147P01 | Screw, Handle (2) |
|
- | |||||
| 6 | 789T053P12 | Washer (2) |
|
- | |||||
| 7 | 296T081S01 | Handle |
|
- | |||||
| 8 | 517T003W41-66 | Pnl Broiler Drwr-wheat |
|
- | |||||
| 9 | 381T077F04-86 | Liner Broiler Drwr |
|
- | |||||
| 10 | 3018614 | Pin-hinge |
|
- | |||||
| 11 | 5303013568 | Pan-broiler |
|
- | |||||
| 12 | 5303131356 | Insert-broiler Pan |
|
- | |||||
| 13 | 106T027P02 | Button, Glide |
|
- | |||||
| 14 | 136T281S05 | Channel, Glide (2) |
|
- | |||||
| 15 | 106T028P01 | Button, Glide |
|
- | |||||
| 12A | 328T015P15 | Insulation (non-illustrated) |
|
- | |||||
| 2A | 3018619 | Spring, Broiler, Rh, C Type |
|
- | |||||
| 3A | 072T659F04-08 | Bracket, Hinge Broiler (rh) |
|
- |
