Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 529T099F05-66 Main Top (wheat) Appelez-nous -
2 5303012700 Grate (5) Appelez-nous -
3 5303131115 Pan-burner (5) Special Order $ 15.62

4 3051354 Trim, Main Top, Lh Appelez-nous -
5 174T100F04-66 Cover, Griddle (wheat) Appelez-nous -
6 286T007P05 Griddle Appelez-nous -
7 5303274240 Rod-main Top Support Appelez-nous -
8 5303207020 Pan-burner Appelez-nous -
9 5303207627 Rivet (2) Appelez-nous -
10 5303207162 Fstnr-push-on (2) Appelez-nous -
11 08067746 Brkt-main Top Hinge Lh Appelez-nous -
*60988 08067747 Brkt-main Top Hinge Rh Appelez-nous -
4A 3051355 Trim, Main Top (rh) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

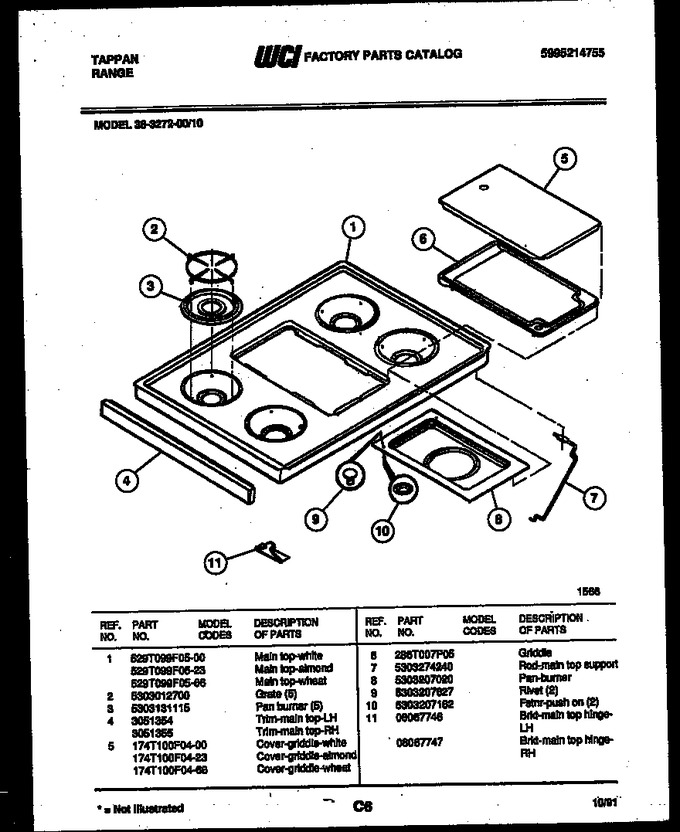

Diagram for 36-3272-66-10
