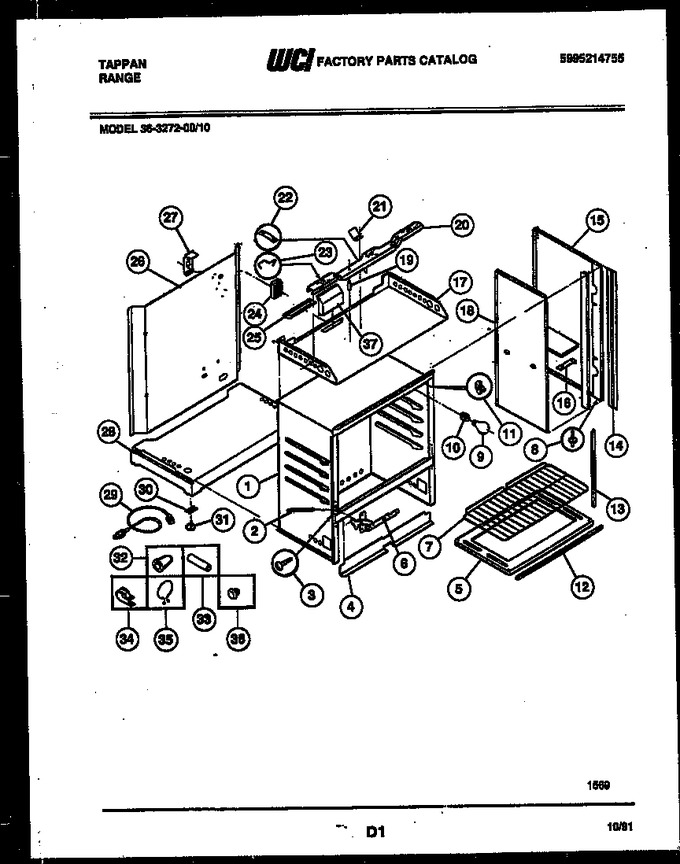

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5303207650 | Spring-oven Door Cam (2) |
|
- | |||||
| 3 | 636T066P06 | Screw, Shoulder (2) |
|
- | |||||
| 4 | 655T308F02 | Shield, Wool |
|
- | |||||
| 5 | 5303206950 | Bottom-oven |
|
- | |||||
| 6 | 5303205939 | Cam-oven Door-lh |
|
- | |||||
| 7 | 591T073P02 | Rack, Oven (2) |
|
- | |||||
| 8 | 08010603 | Pin-body Pnl Guide |
|
- | |||||
| 9 | 40A15 | Oven Light Bulb (Replaces: 5303013071) |
|
Immediately | $ 1.98 | ||||
| 10 | 662T012P11 | Socket, Oven Light |
|
- | |||||
| 11 | 5303011805 | Clip, Thermo Bulb |
|
- | |||||
| 12 | 647T068P02 | Seal-door Top & Bottom (2) |
|
- | |||||
| 13 | 5303207593 | Seal-door-sides (2) |
|
- | |||||
| 14 | 08010602 | Trim-body Pnl Vertical-if Equipped |
|
- | |||||
| 15 | 515T047F14-66 | B/s Pnl-lh Wheat |
|
- | |||||
| 16 | 136T216F01-18 | Channel, Stiffener |
|
- | |||||
| 17 | 5303269825 | Burner-box |
|
- | |||||
| 18 | 048T010F02-18 | Body Panel, Inside |
|
- | |||||
| 19 | 665T072P06 | Spacer, Support Channel |
|
- | |||||
| 20 | 136T300F03-18 | Channel, Burner Support |
|
- | |||||
| 21 | 600T014F01 | Reflector, Griddle Burner |
|
- | |||||
| 22 | 5303207818 | Fstnr-wire Retainer (3) |
|
- | |||||
| 23 | 612T094P01 | Retainer, Oven Burner |
|
- | |||||
| 24 | 709T033P02 | Terminal Block |
|
- | |||||
| 25 | 3131536 | Shield, Wool |
|
- | |||||
| 26 | 3131516 | Back, Main |
|
- | |||||
| 27 | 072T612F02 | Bracket |
|
- | |||||
| 28 | 036T052W05-18 | Base, Main |
|
- | |||||
| 29 | 171T021P07 | Cord-power |
|
- | |||||
| 30 | 241T017P10 | Fstnr-tee Nut Leveling Leg |
|
- | |||||
| 31 | 5303203397 | Screw, Leveling (4) |
|
$ 14.49 | |||||
| 32 | 174T133P02 | Cover, Screw Tip |
|
- | |||||
| 33 | 3200523 | Sleeve Insulator |
|
- | |||||
| 34 | 241T017P128 | Fstnr - Clamp |
|
- | |||||
| 35 | 241T017P238 | Fstnr |
|
- | |||||
| 36 | 5308010594 | Plug Button |
|
- | |||||
| 37 | 3016789 | Flue, Box |
|
- | |||||
| *61004 | 191S020F04 | Wiring Diagram (not For Purchase) |
|
- | |||||
| 15A | 515T047F15-66 | B/s Pnl-rh Wheat |
|
- | |||||
| 36A | 3200323 | Insulation (top & Side) (non-illustrated) |
|
- | |||||
| 36B | 5303200320 | Insulation-back (non-illustrated) |
|
- | |||||
| 36C | 328T015P15 | Insulation Channel (non-illustrated) |
|
- | |||||
| 36D | 3934056 | Anti-tip Brkt (non-illustrated) |
|
- | |||||
| 5A | 636T134P01 | Screw, Bottom (non-illustrated) |
|
- | |||||
| 6A | 5303205940 | Cam-oven Door-rh |
|
- | |||||
| 6B | 355T588S01 | Kit-door Adjustment (non-illustrated) |
|
- |
