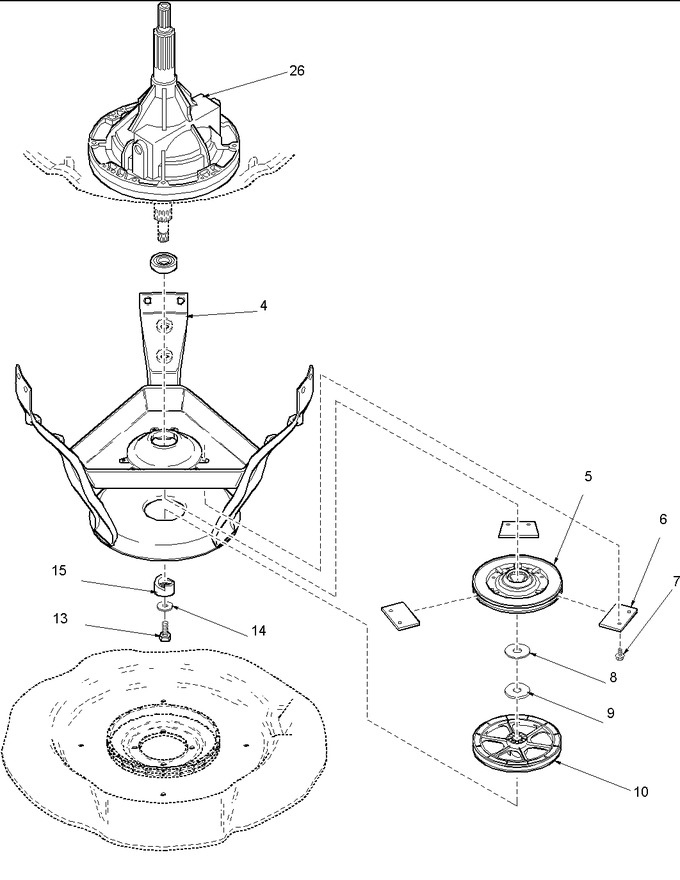

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 4 | 40070001 | Assembley, Milk Stool |
|
- | |||||
| 5 | 40003103 | Brake Assembly |
|
- | |||||
| 5 | Y40003201 | Disc-brake |
|
- | |||||
| 6 | R9900461 | Pad-brake Kit 40054101 |
|
- | |||||
| 7 | 40064401 | Screw |
|
- | |||||
| 8 | 40065701 | Washer, 2 Odx.63 Id |
|
$ 8.22 | |||||
| 9 | 40063201 | Washer, Flat |
|
- | |||||
| 10 | 40047101 | Pulley,spin 710 Rpm |
|
- | |||||
| 13 | 40063401 | Screw, 1/4-20x5/8 Hex |
|
$ 38.22 | |||||
| 14 | 40041501 | Washer |
|
$ 32.07 | |||||
| 15 | 40047401 | Helix, Plastic |
|
- | |||||
| 26 | 40032701 | Assembly, Transmission (710) |
|
- |
