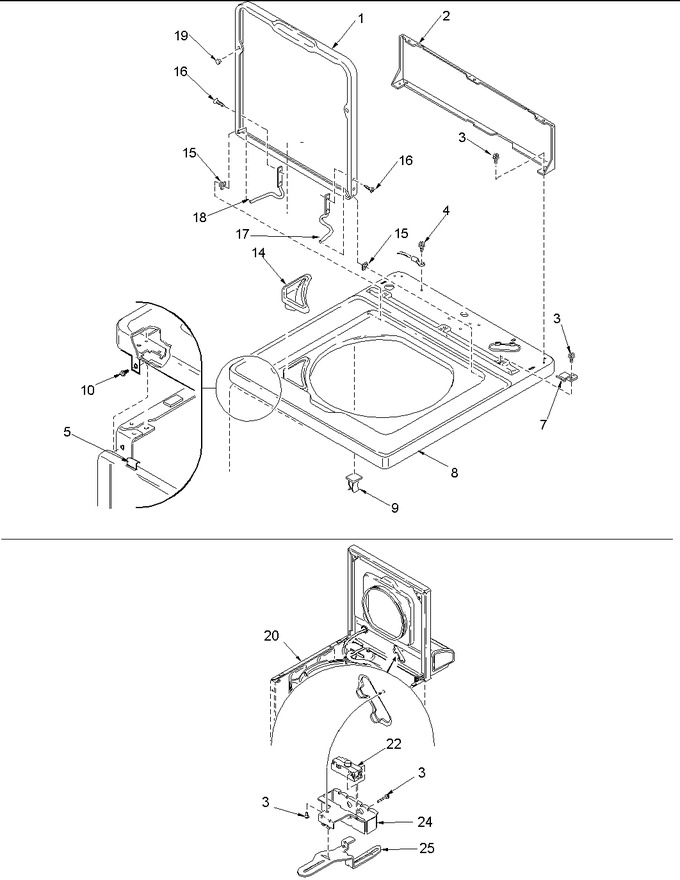

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 40034801W | Lid-w/instructions |
|
- | |||||
| 2 | 40051401 | Panel,home Hood Back |
|
- | |||||
| 3 | WP90767 | Screw, 8b-18x3/8 Slt (Replaces: 501086) |
|
Immediately | $ 7.04 | ||||
| 4 | WP3351614 | Screw, 10-24x3/8 Hex (Replaces: 20530) |
|
Immediately | $ 6.26 | ||||
| 5 | WP22001650 | Clip, Spring (Replaces: 56080) |
|
Immediately | $ 7.34 | ||||
| 7 | 35358 | Clip, Hold Down (Replaces: 40063901) |
|
$ 6.95 | |||||
| 8 | 40000201W | Panel, Top (wht) |
|
- | |||||
| 9 | 40045101 | Clip-hinge Stop |
|
- | |||||
| 10 | 285394 | Screw, 10-16x.44 Uns (Replaces: 503661) |
|
- | |||||
| 14 | 40001701 | Dispenser-bleach |
|
- | |||||
| 15 | 33446 | Bushing, Hinge (Replaces: 40008201) |
|
Immediately | $ 6.95 | ||||
| 16 | WPW10119828 | Screw, 6-32x.340 Flat (Replaces: 40039201) |
|
Immediately | $ 6.47 | ||||
| 17 | 40033501 | Hinge-lid-right Pass |
|
- | |||||
| 18 | 40033401 | Hinge,lid-left(stop) |
|
- | |||||
| 19 | 40038001 | Bumper |
|
$ 8.44 | |||||
| 20 | 40076401W | Cabinet, Washer (wht) |
|
- | |||||
| 22 | 40035001 | Switch, Spst |
|
- | |||||
| 22 | 40034901 | Lid Switch Assembly |
|
- | |||||
| 24 | 40009801 | Holder, Lid Switch |
|
- | |||||
| 25 | 40009701 | Arm, Lid Switch |
|
- |
