SELECT A DIAGRAM

01 - Agitator, Drive Bell, Washtub & Hub


02 - Bearings, Brake & Pulley & Transmission


03 - Cabinet Top, Loading Door & Door Switch


04 - Control Panel


05 - Front, Base And Cabinet & Special Tools


06 - Miscellaeous Information

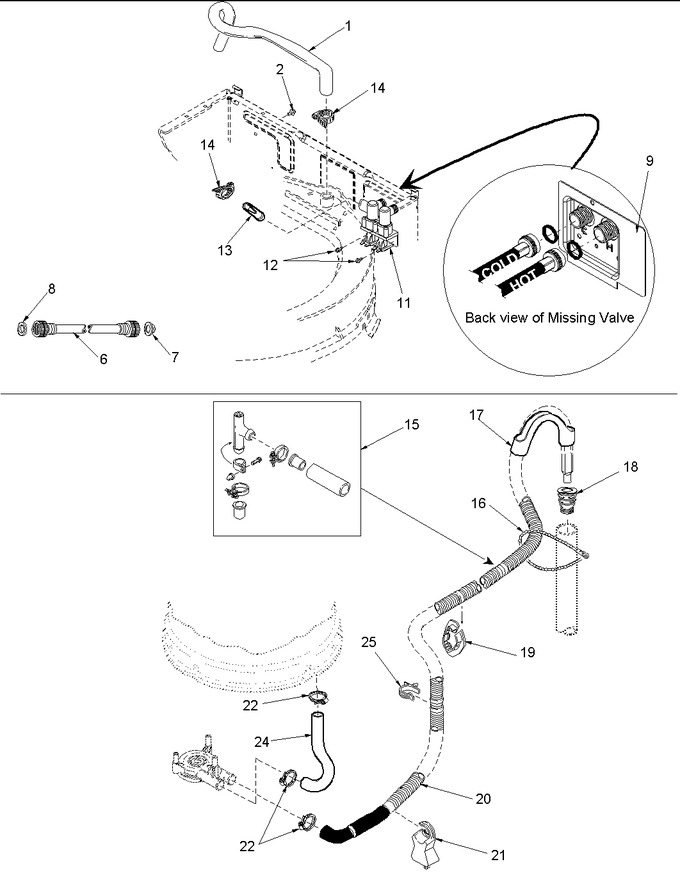

07 - Mixing Valve And Hoses


08 - Motor, Belt, Pump, And Idler Assy


09 - Outer Tub, Pressure Tube & Counterweight


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	40038401		Hose		Appelez-nous	-
2	285394		Screw, 10-16x.44 Uns   (Replaces: 503661)		Appelez-nous	-
6	W11629055		Hose, Water Inlet (hot)   (Replaces: 40058001)				$ 24.93
6	W11629055		Hose, Water Inlet (cold)   (Replaces: 40058002)				$ 24.93
7	28605		Washer, Filter		Appelez-nous	-
8	20290		Washer, 19/32 Idx1.031		Appelez-nous	-
9	40061701		Plate,mixing Valve		Appelez-nous	-
11	40035101		Valve, Mixing (n-50)		Appelez-nous	-
12	WP90767		Screw, 8b-18x3/8 Slt   (Replaces: 501086)			Immediately	$ 7.04
13	34500		Preventor, Backflow			Immediately	$ 6.95
14	36801		Clamp, Hose			Immediately	$ 9.22
15	76660		Siphon Kit   (Replaces: 562P3)			Immediately	$ 119.93
16	33489		Strap, Standpipe Bead		Appelez-nous	-
17	33615		Sleeve, Drain Hose				$ 8.35
18	40008101		Adapter, Standpipe				$ 84.69
19	40058501		Relief, Strain Drain				$ 35.53
20	WP40053901		Hose, Drain   (Replaces: 40053901)			Immediately	$ 61.94
21	40044901		Stand, Hose		Appelez-nous	-
22	WP285655		Clamp, Hose   (Replaces: 36802)			Immediately	$ 7.55
24	40054001		Hose-tub To Pump		Appelez-nous	-
25	36014		Clip, Retainer-hose				$ 6.95

    View Diagram in Separate Window       Print Part List
