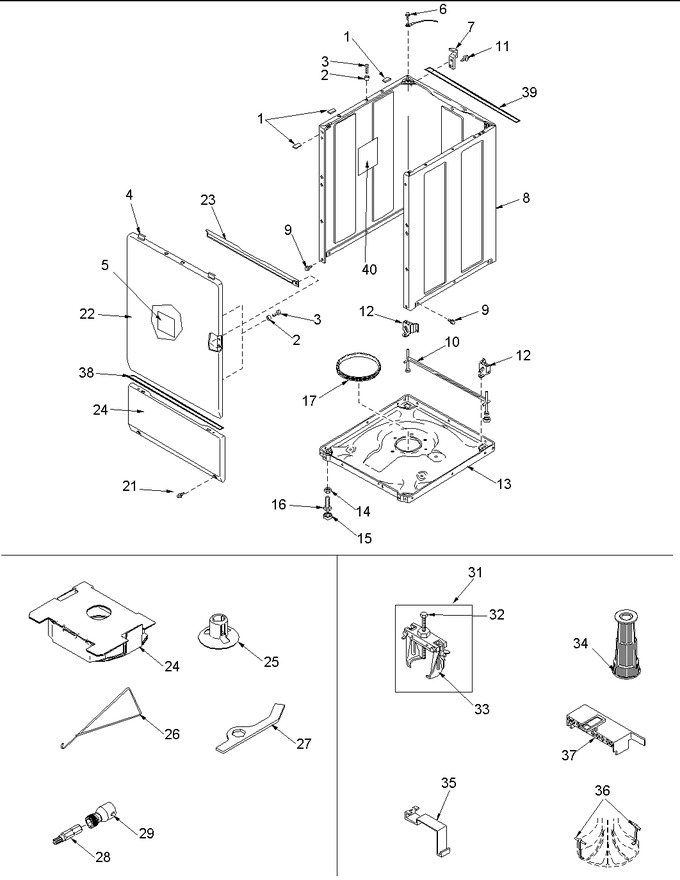

LWG65AW (BOM: PLWG65AW) | TransGlobal : Appliance Model Lookup

Diagram #	Part Number	Description	Availability	Ships	Price
1	56128	Pad, Bumper (Replaces: Y56128)			$ 6.95
2	56079	Locator, Panel (Replaces: 505187)		Immediately	$ 6.95
3	39733	Screw, Tapping (Replaces: 32671)			$ 6.95
4	WP22001650	Clip, Spring (Replaces: 56080)		Immediately	$ 7.34
5	40068901	Damper, Front Panel	Appelez-nous	-
6	WP3351614	Screw, 10-24x3/8 Hex (Replaces: 20530)		Immediately	$ 6.26
7	D510136	Hinge, Top (Replaces: 500003)			$ 6.95
8	40033201W	Assy-cabinet	Appelez-nous	-
9	WP27001200	Screw, 12bx1/2no.10 Hx (Replaces: 40038201)			$ 6.91
10	40033001	Assy-leg & Stab Bar	Appelez-nous	-
11	WP3390631	Screw, 10b-16x1/4 (Replaces: 40064801)			$ 7.04
12	40031501	Bracket, Self Leveling	Appelez-nous	-
13	40031101	Assy-base-complete	Appelez-nous	-
14	WP210385	Nut, Leg (Replaces: 40038101)			$ 6.26
15	40016001	Foot, Rubber			$ 5.65
16	22003428	Leg, Leveling (Replaces: 40039001)		Immediately	$ 14.41
17	40037401	Ring, Friction			$ 62.08
21	40034101	Screw, No.12bx1/2	Appelez-nous	-
22	40035401W	Panel, Front (wht)	Appelez-nous	-
23	56486	Brace, Top	Appelez-nous	-
24	40045301W	Panel, Access (wht)	Appelez-nous	-
24	40068201	Shipping Brace Assembly	Appelez-nous	-
25	40047301	Shipping Plug	Appelez-nous	-
26	321P4	Hook, Spring (Replaces: 289P4)		Immediately	$ 17.34
27	306P4	Hex Wrench			$ 33.30
28	282P4	T25 Tamper Resistant Bit			$ 14.60
29	24161	Torx Bit Holder	Appelez-nous	-
31	294P4	Bell Tool			$ 376.27
32	294P4	Drive Bell Bolt (Replaces: 294P4B)			$ 376.27
33	294P5A	Drive Bell Arms	Appelez-nous	-
34	293P4	Seal Tool			$ 43.70
35	273P4	Tub Cover Gasket Tool			$ 68.85
36	254P4P	Agitator Hooks			$ 108.11
37	34677	10 Circuit Plug	Appelez-nous	-
39	685366	Tape,foam	Appelez-nous	-
40	40031701	Pad, Side Panel	Appelez-nous	-
NI	40056601	Assy-wire Harn Base	Appelez-nous	-
NI	40054401	Harness, Hood	Appelez-nous	-
