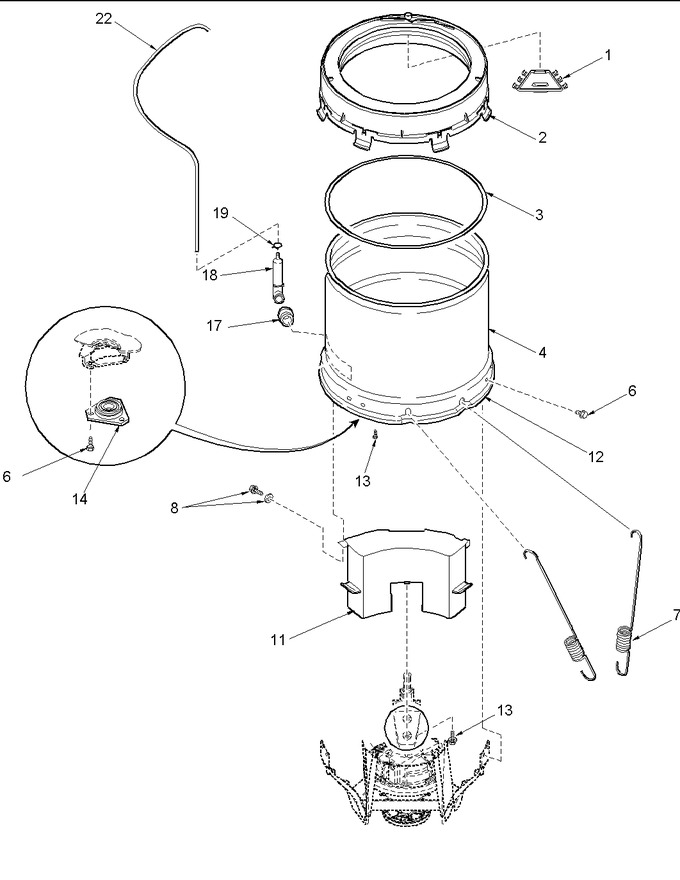

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 40001901 | Channel, Water Inlet |
|
- | |||||
| 2 | 40002001 | Cover-outer Tub |
|
- | |||||
| 3 | 40076601 | Gasket, Tub Cover |
|
$ 27.07 | |||||
| 4 | 40001001 | Tub-plastic Outer |
|
- | |||||
| 6 | 40067901 | Screw |
|
- | |||||
| 7 | 40045201 | Spring-tall Tub |
|
- | |||||
| 8 | 40070401 | Screw, 1/4-20x7/8 Hex |
|
- | |||||
| 11 | 40015901 | Assembly Counter Weight |
|
- | |||||
| 12 | 40001102P | Bottom, Outer Tub |
|
- | |||||
| 14 | WP40004201P | Main Bearing Assembly (Replaces: 40004201) |
|
$ 106.01 | |||||
| 17 | 29175 | Grommet (Replaces: 40037801) |
|
$ 8.56 | |||||
| 18 | COMM PART | Assembly, Pressure Bulb (Replaces: 40008501) |
|
- | |||||
| 19 | WP596669 | Clamp, Hose (Replaces: 40054901) |
|
Immediately | $ 7.56 | ||||
| 22 | 40065001 | Tubing, Pvc 28`` |
|
- |
