SELECT A DIAGRAM

01 - Base


02 - Spinner Assembly & Outer Tub Cover

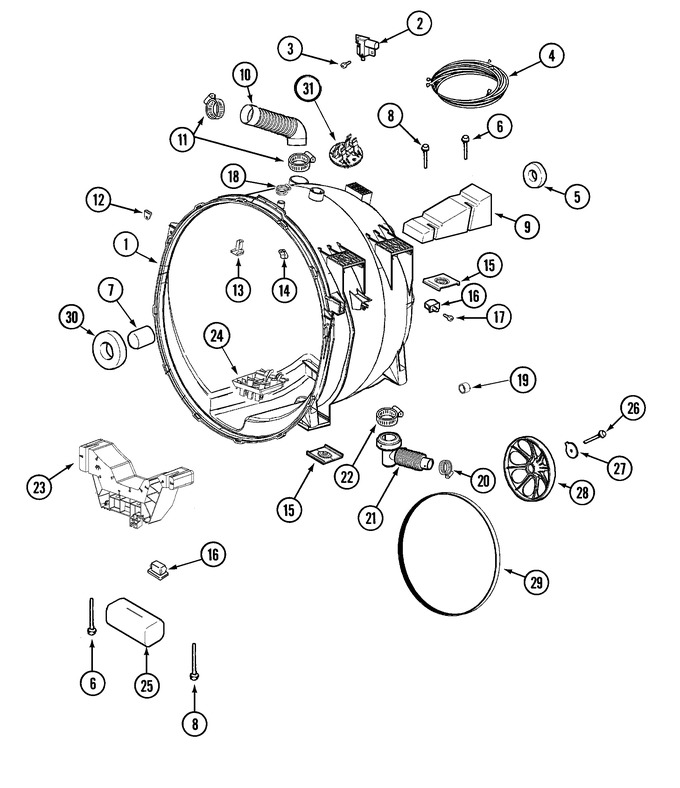

03 - Outer Tub


04 - Cabinet-rear


05 - Control Panel


06 - Control Center (pd)


07 - Top


08 - Cabinet-front


09 - Door, Front Panel & Shroud


10 - Wiring Information


11 - Motor & Motor Control


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	22002907		Tub Assembly	10	Appelez-nous	-
001	22004080		Outer Tub Assembly As-pk Kit	22	Appelez-nous	-
002	22003302		Switch, Internal Unbalance	10			$ 44.42
003	WP33002917		Screw, Inertial Switch   (Replaces: 912615)	10		Immediately	$ 6.90
004	22003271		Harness, Unbalance Switch	10	Appelez-nous	-
004	22003684		Wire Harness, Upper Sub Assy	11	Appelez-nous	-
004	22004052		Harness Upper Sub Assy	18			$ 84.44
005	Y200720		Ball Bearing, Radial----s	10	Appelez-nous	-
006	22003615		Bolt, Double Sems 5-3\8	10			$ 7.64
007	22002935		Spacer, Bearing	10			$ 26.90
008	22003616		Bolt, Double Sems 3-3\8	10			$ 6.51
009	22002102		Weight, Counter Balance	10	Appelez-nous	-
010	WP22002083		Hose, Injector   (Replaces: 22002083)	10			$ 124.55
011	WP616099		Clamp, Injector Hose   (Replaces: 22002052)	10		Immediately	$ 7.03
012	22002103		Clip, U	10	Appelez-nous	-
013	22004310		Deflector, Water   (Replaces: 22002959)	10			$ 13.68
014	22002006		Clip, Wire Harness & Outer Tub	10	Appelez-nous	-
014	22002061		Screw	10	Appelez-nous	-
015	22002065		Nut, Counter Balance	10	Appelez-nous	-
016	W11573574		Screw   (Replaces: 22001995)	10		Immediately	$ 12.62
016	WP22002044		Switch, Unbalance   (Replaces: 22002044)	10			$ 80.94
016	22003065		Cover, Unbalance Switch	10	Appelez-nous	-
016	22004051		Unbalance Switch Shield	18	Appelez-nous	-
017	22002061		Screw, Displacement Switch	10	Appelez-nous	-
018	WP596669		Clamp, Hose   (Replaces: 202515)	10		Immediately	$ 7.56
019	22003261		Plug, Outer Tub	10	Appelez-nous	-
019	WP285655		Clamp, Hose Double Wire   (Replaces: 22003295)	10		Immediately	$ 7.55
020	WP285655		Clamp, Drain Hose   (Replaces: 22001984)	10		Immediately	$ 7.55
021	22003262		Hose, Tub To Pump	10			$ 27.27
022	WP696392		Clamp, Sump Hose   (Replaces: 22002053)	10			$ 7.31
023	22003253		Bracket, Front Weight	10	Appelez-nous	-
023	22003826		Lower Bracket	11	Appelez-nous	-
024	22002059		Screw	10			$ 5.33
024	22003710		Sump Cap W/ Labyrinth Feature	10			$ 34.38
025	22003225		Cushion	10	Appelez-nous	-
025	22003827		Cushion	11	Appelez-nous	-
026	WP22003937		Screw, Spinner   (Replaces: 22002057)	10			$ 7.43
027	WP22003936		Washer, Spinner Shaft   (Replaces: 22002055)	10			$ 7.20
027	WP22003936		Washer (1 1/4``)   (Replaces: 22003936)	17			$ 7.20
028	22002315		Pulley, Spinner   (Replaces: 22001998)	10			$ 157.26
029	12001788		Belt Kit, Drive   (Replaces: 12001435)	10		Immediately	$ 37.69
030	22002934		Bearing, Front	10			$ 37.86
031	22002797		Clip, Hose (saddle Horn)	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
