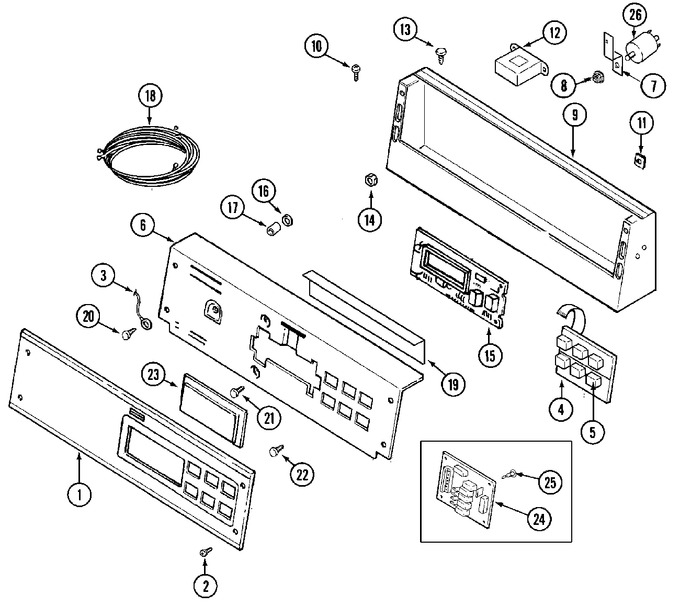

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	22003688		Panel, Control	10	Appelez-nous	-
002	WPW10131119		Screw, Control Panel   (Replaces: 215506)	10			$ 6.26
003	205810		Wire, Ground	10	Appelez-nous	-
004	WPW10135389		Control Switch Assembly   (Replaces: 206808)	10			$ 125.66
004	W10756178		Screw, Control Switch   (Replaces: 215527)	10			$ 5.39
005	WPW10424308		Pushbutton, Control Switch   (Replaces: 215517)	10		Immediately	$ 18.38
006	22003676		Switch Brkt & Back Brkt (wht)	10	Appelez-nous	-
007	22003048		Bracket, Line Filter	10	Appelez-nous	-
007	WP489128		Screw, Bracket   (Replaces: 912365)	10			$ 9.79
008	22003049		Nut (8mm)	10	Appelez-nous	-
009	22003089		Console (wht)	10	Appelez-nous	-
010	WP489128		Screw, Console   (Replaces: 22001996)	10			$ 9.79
011	215003		Fastener, Screw	10	Appelez-nous	-
012	WPW10131839		Transformer   (Replaces: 22001960)	10		Immediately	$ 120.20
013	211251		Screw, Transformer	10	Appelez-nous	-
014	22001419		Nut, Transformer	10	Appelez-nous	-
015	22004245		Board, Control Pd-japan	10	Appelez-nous	-
016	M0282005		Locknut, Control Board   (Replaces: 912077)	10			$ 7.07
017	33001204		Standoff, Circuit Board	10	Appelez-nous	-
018	22003790		Harness, Wire	10	Appelez-nous	-
019	22002954		Deflector, Water (w/adhesive)	10	Appelez-nous	-
020	WP489399		Screw, Ground Wire   (Replaces: 211252)	10			$ 6.26
021	215526		Screw, Circuit Board	10	Appelez-nous	-
022	W10756178		Screw, Back Bracket   (Replaces: 215527)	10			$ 5.39
023	WPW10131114		Cover, Display   (Replaces: 22001962)	10			$ 42.79
024	22002971		Board, Relay	10	Appelez-nous	-
025	22002943		Stand-off	10	Appelez-nous	-
026	22003047		Filter, Power Line	10	Appelez-nous	-
026	22003050		Wire, Ground	10	Appelez-nous	-
